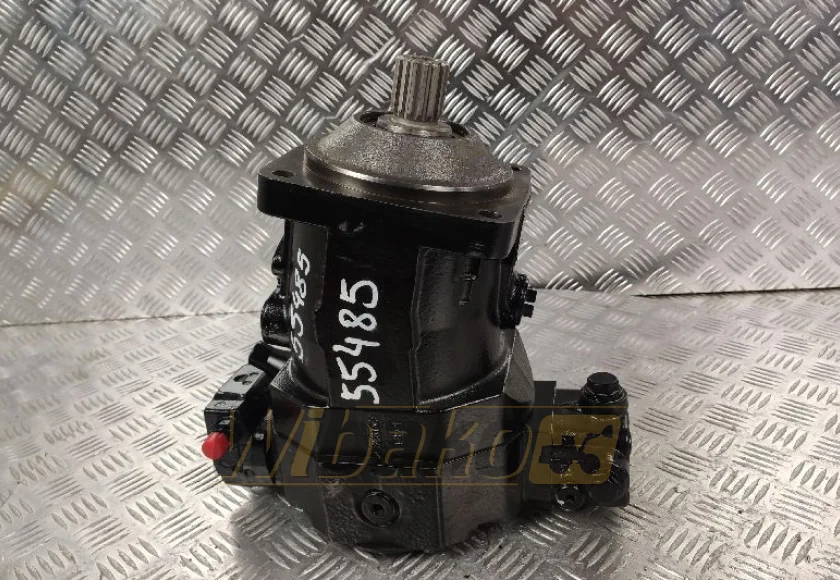

Hydraulic motor Rexroth A6VM080DA0000007C/65MWV0N4Z81D0-0 R902260027

Rexroth A6VM080DA0000007C hydraulic motor, axial piston variable, 80 cm³ displacement, automatic control, ISO 6149 sealing, standard shaft bearing, and flushing valve included.

  • Condition: new
  • SKU: 55485
Ocena 5,0

- +

Product description

Axial piston variable motor A6VM Series 65. Geometric displacement 080 cm3. Control device: automatic control, speed related, hydraulic travel direction valve. Without pressure control/override. Without solenoid. Without additional function. Damping one-sided in outlet from large stroking chamber. Setting range for displacement: Without Vg max setting screw, long (0-adjustable) Vg min setting screw. Metric, port threads with O-ring sealing according to ISO 6149. Sealing material: FKM (fluoroelastomer). Standard shaft bearing. Mounting flange ISO 3019-2 140-4. Splined shaft W35×2×16×9g. SAE working ports A and B at rear. With flushing and boost pressure valve, mounted flushing on both sides, flushing flow at: Δp = pND ‒ pG = 25 bar and v = 10 mm2/s (pND = low pressure, pG = case pressure). Flushing flow: 10. Without speed sensor. Standard version .

Specification

Specification Value
name Hydraulic motor
mark Rexroth
type A6VM080DA0000007C/65MWV0N4Z81D0-0
part number R902260027
serial number 91021706
condition new
product type Axial piston variable motor A6VM Series 65
geometric displacement 080 cm³
control device Automatic control, speed related, hydraulic travel direction valve
pressure control Without pressure control/override
solenoid Without solenoid
additional function Without additional function
damping One-sided in outlet from large stroking chamber
displacement setting range Without Vg max setting screw, long (0-adjustable) Vg min setting screw
port threads Metric, with O-ring sealing according to ISO 6149
sealing material FKM (fluoroelastomer)
shaft bearing Standard shaft bearing
mounting flange ISO 3019-2 140-4
shaft type Splined shaft W35×2×16×9g
sae working ports A and B at rear
flushing and boost pressure valve With flushing and boost pressure valve, mounted flushing on both sides
flushing flow Δp = pND ‒ pG = 25 bar and v = 10 mm²/s (pND = low pressure, pG = case pressure)
flushing flow rate 10
speed sensor Without speed sensor
version Standard version

List of reviews:

Jerzy

2025-03-30

Silnik hydrauliczny sprawdził się doskonale w mojej maszynie budowlanej. Montaż był prosty, a wydajność na wysokim poziomie. Polecam każdemu, kto szuka niezawodnych części.

Write a review.

See also

Discover our wide range of products

used Hydraulic motor Hydromatik A2FM56/6.1W-PZB02 211.17.25.42
Hydraulic motors

Hydraulic motor Hydromatik A2FM56/6.1W-PZB02 211.17.25.42

Price set Individually

- +

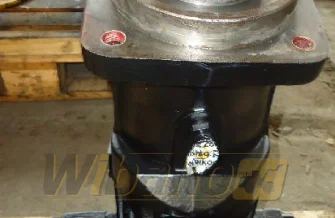

used Hydraulic motor Parker F12-030-MF-IH-Z-236-000 3799864
Hydraulic motors

Hydraulic motor Parker F12-030-MF-IH-Z-236-000 3799864

Price set Individually

- +

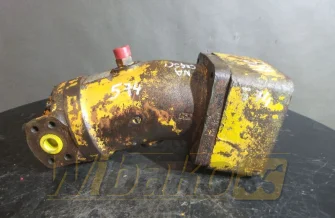

used Drive motor Linde BMV186 02
Hydraulic motors

Drive motor Linde BMV186 02

Price set Individually

- +

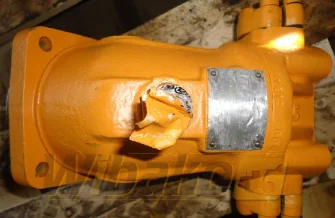

used Drive motor Hydromatik A6VE80HZ/60W-PZL020B R909428389
Hydraulic motors

Drive motor Hydromatik A6VE80HZ/60W-PZL020B R909428389

Price set Individually

- +

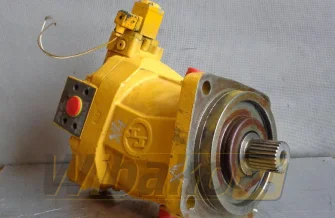

used Hydraulic motor Hydromatik A2FM56/6.1W-PZB02 211.17.25.42
Hydraulic motors

Hydraulic motor Hydromatik A2FM56/6.1W-PZB02 211.17.25.42

Price set Individually

- +

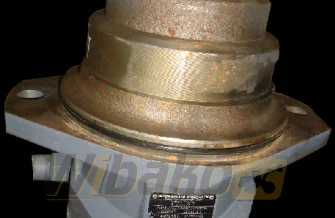

used Swing motor Komatsu PW130-6K
Hydraulic motors

Swing motor Komatsu PW130-6K

Price set Individually

- +

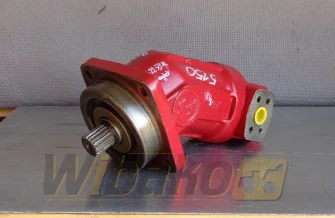

used Drive motor Zeppelin 216
Hydraulic motors

Drive motor Zeppelin 216

Price set Individually

- +

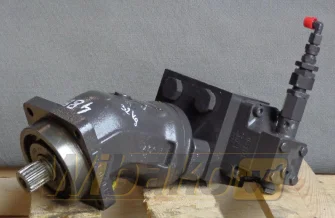

used Hydraulic motor Rexroth A6VE80HZ3/63W-VAL027B R902014276
