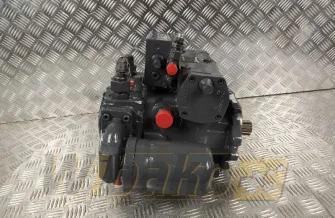

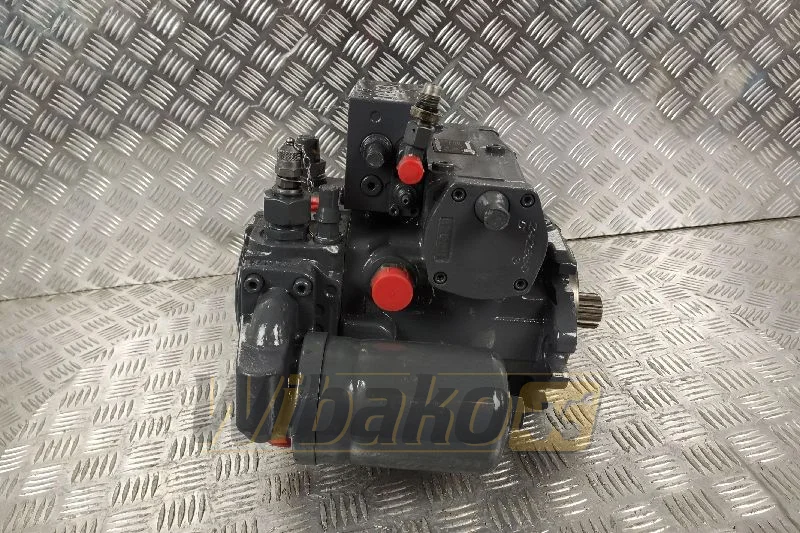

Hydraulic pump Rexroth A4VG71DWDM1/32R-NZF02F001F-S R902270943

Rexroth A4VG71DWDM1 hydraulic pump with 71 cm³ displacement, clockwise rotation, and integrated boost pump. Features high pressure relief valve (100-420 bar) and NBR sealing.

  • Condition: new
  • SKU: 70483
Ocena 4,7

- +

Product description

Axial piston variable pump A4VG. Geometric displacement 71 cm3. Pressure cut-off. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft DIN 5480 for single pump. Mounting flange SAE J744 2+4-hole. SAE working port A and B, top and bottom Suction port S bottom. Integrated boost pump. Without through drive. High pressure relief valve, pilot operated 100 to 420 bar with bypass. Filtration in the boost pump pressure line. Attachment filter with cold start valve.

Specification

Specification Value
name Hydraulic pump
mark Rexroth
type A4VG71DWDM1/32R-NZF02F001F-S
part number R902270943
condition new
geometric displacement 71 cm³
pressure cut-off Yes
series 3
index 2
direction of rotation Clockwise
sealing material NBR (Nitrile Rubber)
shaft seal material FKM (Fluoroelastomer)
shaft type Splined DIN 5480
mounting flange SAE J744 2+4-hole
sae working port a Top
sae working port b Bottom
suction port Bottom
integrated boost pump Yes
through drive No
high pressure relief valve Pilot Operated 100 to 420 bar
bypass Yes
filtration In the boost pump pressure line
attachment filter With Cold Start Valve
