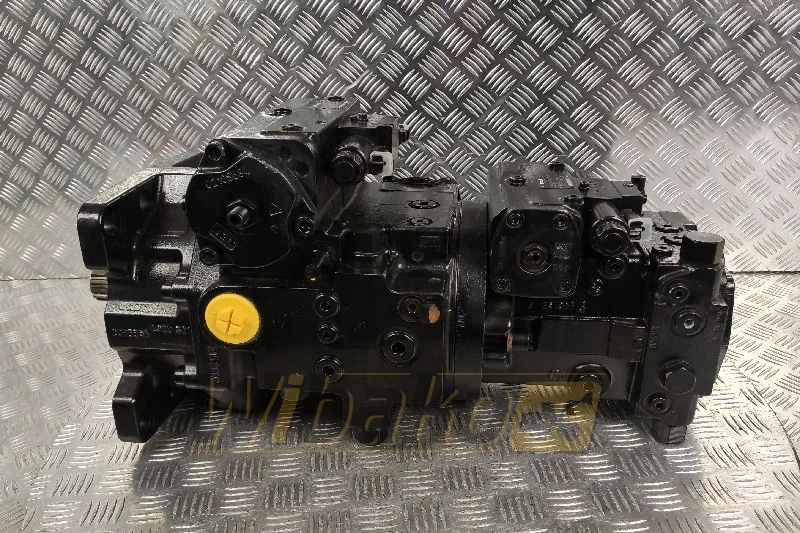

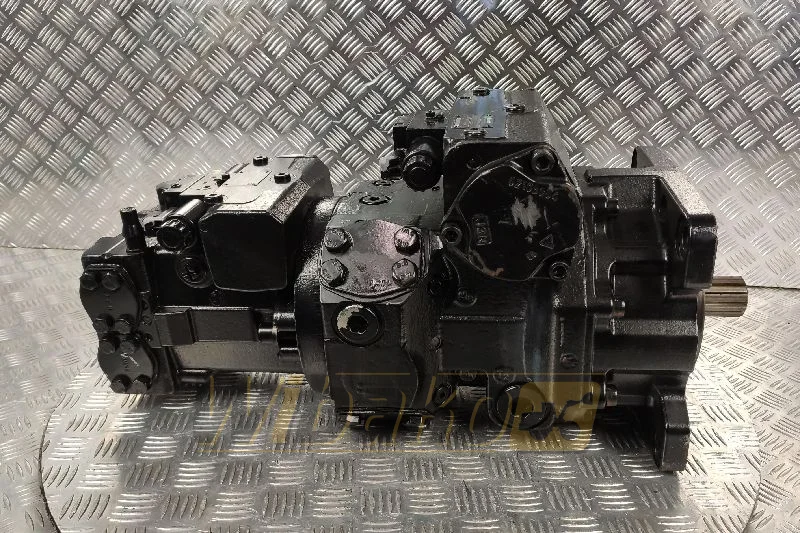

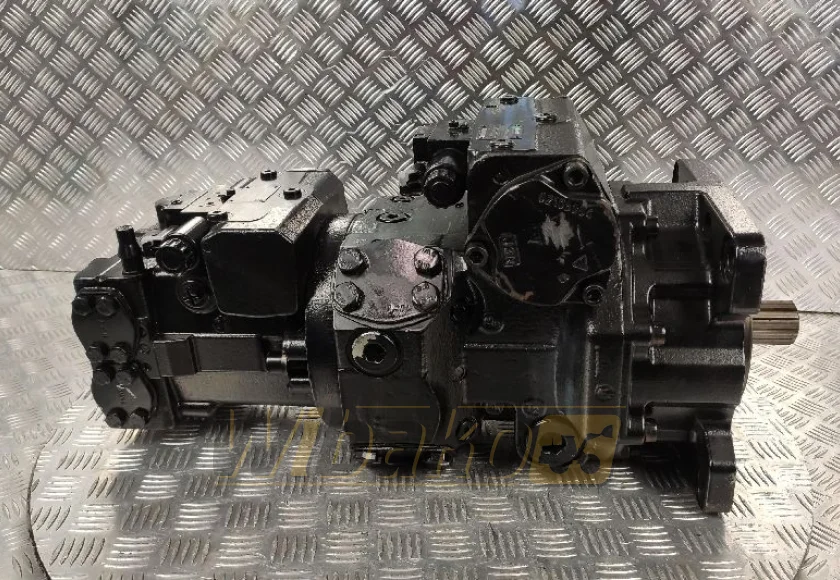

Hydraulic pump Rexroth A4VG175EP1BP000/40MRNE4T11FC2S7AS00-0 – new.
- Condition: new
- SKU: 62961
Hydraulic pump Rexroth A4VG175EP1BP000/40MRNE4T11FC2S7AS00-0 – new.
Hydraulic pump Rexroth A4VG175EP1BP000/40MRNE4T11FC2S7AS00-0 – new part offered by WIBAKO.
Part number: R902223128. To be sure the part fits, compare the number on the nameplate or in the catalogue – or send us an enquiry with the part number or the machine (engine) serial number and we will confirm the fit.
Weight: 100 kg. Shipping: new parts ordered by 10:00 (CET) are dispatched the same working day, other orders the next working day. Due to its weight it ships on a pallet (dispatch within 2 working days).
We also carry out hydraulic pump and motor overhauls.
| Specification | Value |
| name | Hydraulic pump |
| mark | Rexroth |
| type | A4VG175EP1BP000/40MRNE4T11FC2S7AS00-0 |
| part number | R902223128 |
| serial number | 28099293 |
| condition | new |
| product type | Axial piston variable pump A4VG |
| design | Swashplate |
| nominal pressure | 450 bar |
| maximum pressure | 500 bar |
| circuit type | Closed circuit |
| geometric displacement | 175 cm³ |
| control type | Proportional control |
| electric voltage | 12 V |
| mechanical stroke limiter | Yes |
| stroking chamber pressure port | X3, X4 |
| series | 40 |
| port type | Metric ports according to ISO 6149 with O-ring seal |
| fastening thread | Metric according to DIN 13 |
| direction of rotation | Clockwise (viewed on drive shaft) |
| sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) |
| mounting flange | SAE J744 165-4 |
| shaft type | Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP |
| working ports | SAE A and B, on left side (45° left) |
| rotary group | Standard rotary group, boost pump integrated, standard internal gear pump |
| flange sae j744 | Diameter- 127-2 (C), mounting- horizontally, code- C2 |
| hub for splined shaft | Diameter- 1 1/4 in 14T 12/24DP, code- S7 |
| high-pressure relief valve | Direct operated, fixed setting |
| low-pressure relief valve | Fixed setting |
| filtration | In the boost pump suction line |
