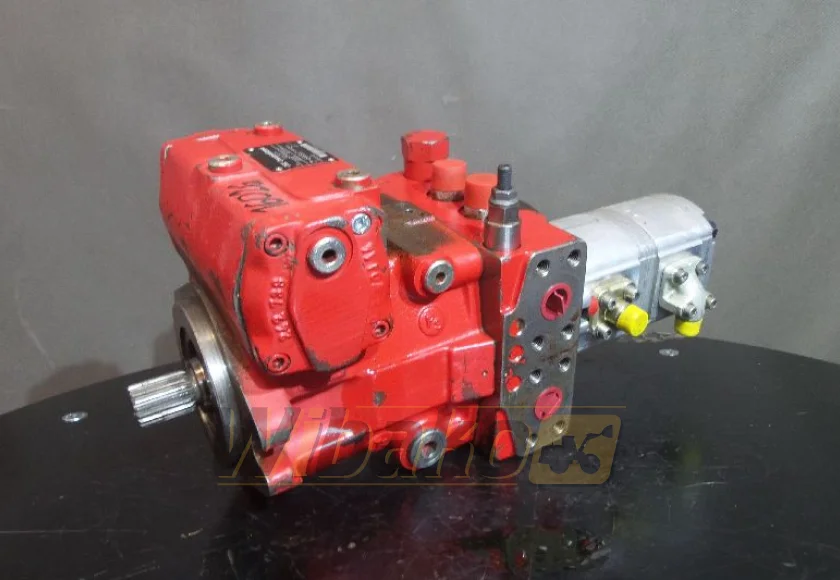

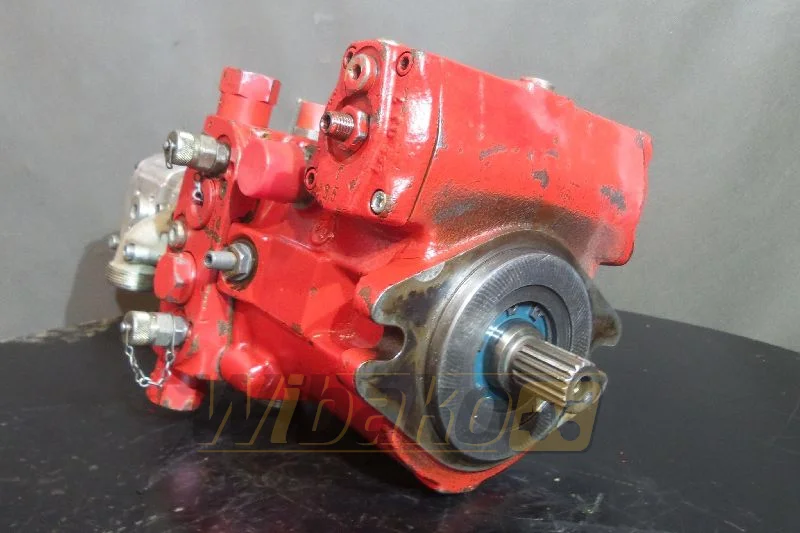

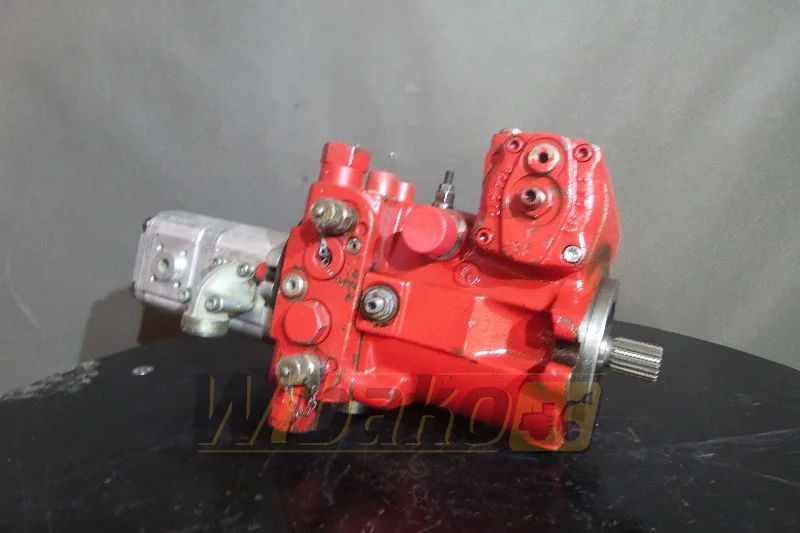

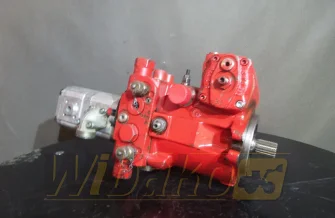

Swing pump O&K A4VG28DWDT1/32R-NZC10F013D-S R902023012

Axial piston variable pump O&K A4VG28DWDT1/32R-NZC10F013D-S with 28 cm³ displacement, clockwise rotation, and integrated boost pump. High-pressure relief valve set at 250-420 bar.

  • Condition: used
  • SKU: 23990
Ocena 4,0

- +

Product description

Axial piston variable pump A4VG. Geometric displacement 28 cm3. Pressure cut-off. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft DIN 5480 for single pump. Mounting flange SAE J744 2-hole. SAE working port A and B, same side right. Suction port S bottom. Integrated boost pump. Flange SAE J744 82-2 (A), hub for splined shaft 5/8 in 9T 16/32DP. High-pressure relief valve, direct operated, fixed setting 250 to 420 bar without bypass. Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa).

Specification

Specification Value
name Swing pump
mark O&K
type A4VG28DWDT1/32R-NZC10F013D-S
part number R902023012
serial number 2460371 / 252.13.06.05
condition used
product type Axial piston variable pump A4VG
geometric displacement 28 cm³
pressure cut-off Yes
series 3
index 2
direction of rotation Clockwise (viewed on drive shaft)
sealing material NBR (nitrile rubber)
shaft seal material FKM (fluoroelastomer)
shaft type Splined shaft DIN 5480 for single pump
mounting flange SAE J744 2-hole
sae working port A and B, same side right
suction port S bottom
integrated boost pump Yes
flange specification SAE J744 82-2 (A), hub for splined shaft 5/8 in 9T 16/32DP
high-pressure relief valve Direct operated, fixed setting 250 to 420 bar without bypass
filtration In the boost pump pressure line
external boost circuit filtration ports Fe and Fa
