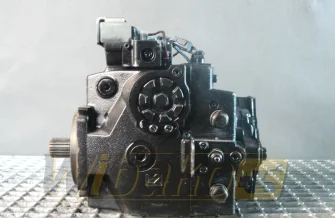

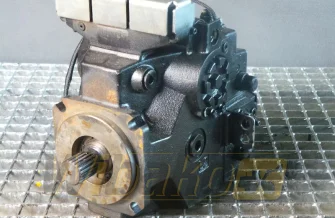

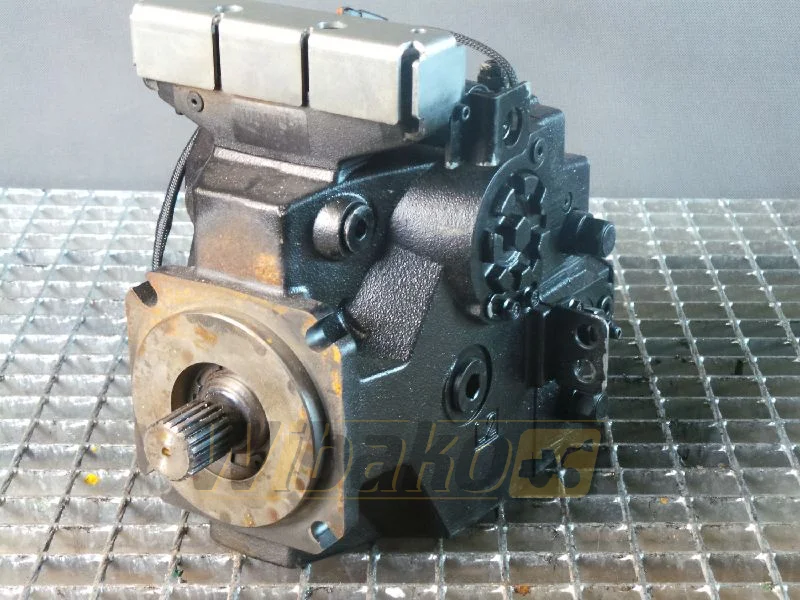

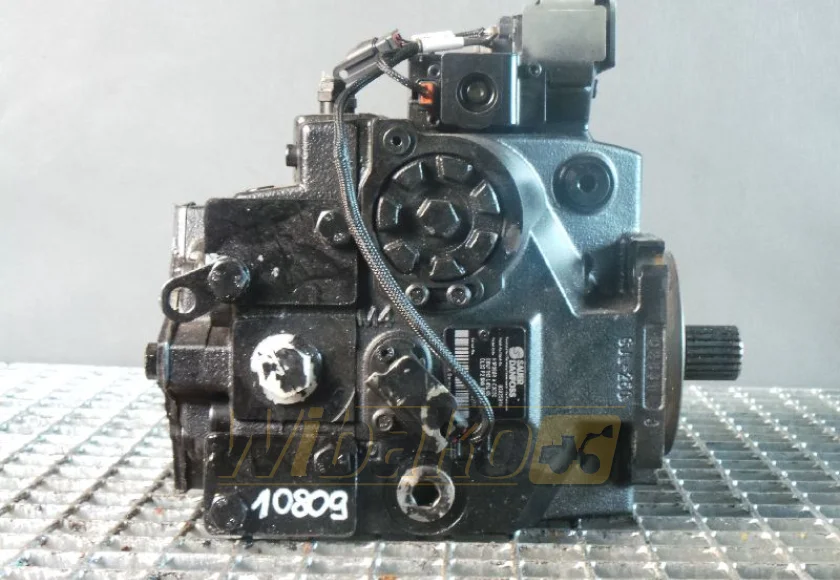

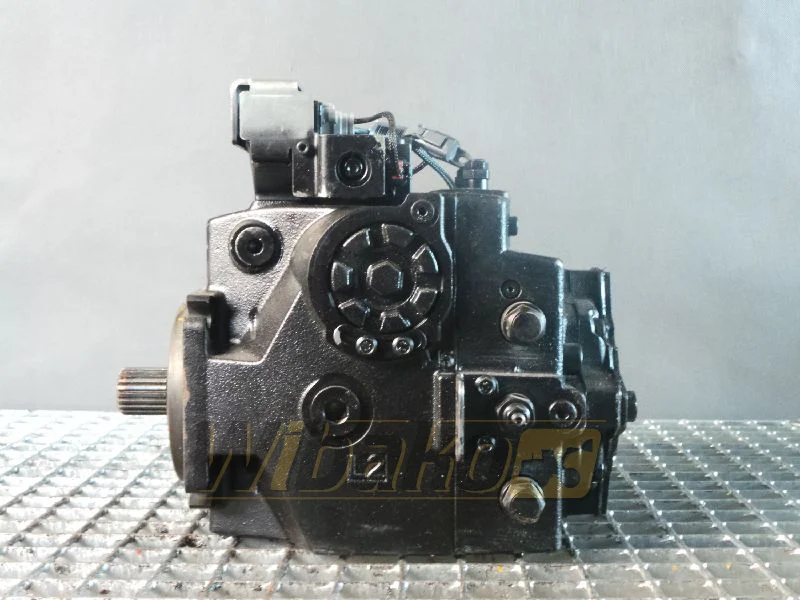

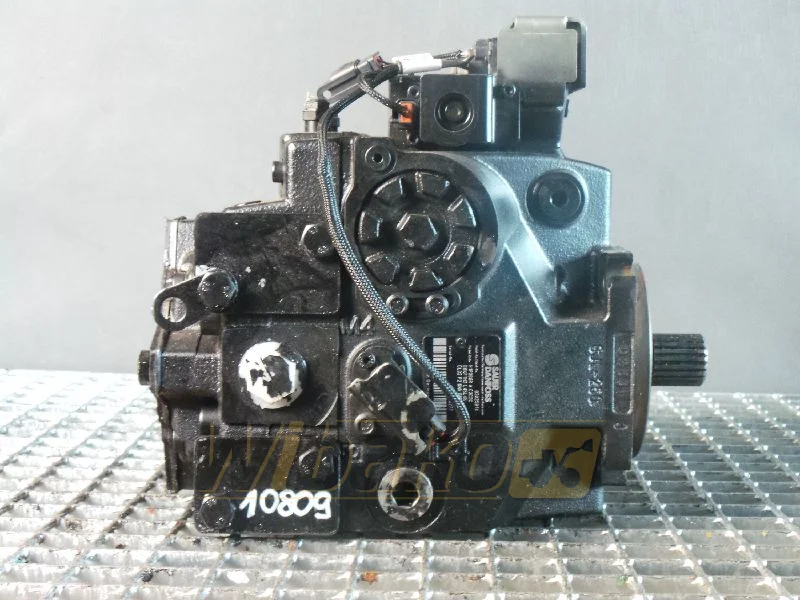

Hydraulic pump Sauer H1P069RAC3C2CD6KF1H3L45L45CL32P2NNND6F 83025814

Sauer H1P069RAC3C2CD6KF1H3L45L45CL32P2NNND6F 83025814 – high-pressure axial piston variable displacement pump for construction and industrial machinery.

  • Condition: new
  • SKU: 10809
Ocena 4,9

- +

Product description

Hydraulic Pump Sauer H1P069RAC3C2CD6KF1H3L45L45CL32P2NNND6F

Description

The Sauer H1P069RAC3C2CD6KF1H3L45L45CL32P2NNND6F hydraulic pump (part no. 83025814) is a high-pressure axial piston variable displacement pump designed for demanding open and closed circuits. Its advanced design and use of high-strength materials ensure excellent efficiency and reliability under all conditions. The pump is the perfect solution for construction, road, forestry, and industrial machinery requiring precise flow control, high energy efficiency, and long service life.

Technical Data

  • Type: axial piston variable displacement pump
  • Nominal operating pressure: up to 420 bar
  • Maximum peak pressure: up to 500 bar
  • Displacement: approx. 69 cm³/rev
  • Speed range: up to 3000 rpm (depending on operating conditions)
  • Rotation: clockwise and counterclockwise
  • Operating temperature: -25°C to +90°C
  • Working fluid: hydraulic oils HLP DIN 51524, biodegradable fluids on request
  • Suitable for open and closed circuits

Application

The Sauer H1P069 pump is widely used in heavy-duty machinery and special-purpose vehicles such as excavators, loaders, road rollers, harvesters, and industrial machines. With flow regulation and compatibility with Load Sensing and electronic control systems, it provides precise control of hydraulic force and speed.

Features

  • High energy efficiency with flow-on-demand regulation
  • Compact and modular design for easy installation
  • Through-drive option for multiple pump setups
  • Resistance to overload and long-term high-pressure operation
  • Noise-optimized design for low sound and vibration
  • Durable construction with advanced materials and manufacturing
  • Compatible with modern valves and control systems

Specification

Specification Value
name Hydraulic pump
mark Sauer
type H1P069RAC3C2CD6KF1H3L45L45CL32P2NNND6F
part number 83025814
serial number n132510277
condition new
displacement 69 cm³/rev
nominal pressure 420 bar
maximum pressure 500 bar
maximum speed 3000 rpm
operating temperature -25°C to +90°C
