Hydraulic motor Sauer H1B080 AL2BANB PBDSJS SA10NN

The listed price applies when the old (used) product is returned.
The Sauer H1B080 hydraulic motor is a compact, variable displacement unit with high efficiency and durability, ideal for mobile and industrial drives.

  • Condition: new
  • SKU: 9364
Ocena 4,8

2 361.11 EURNet

- +

Product description

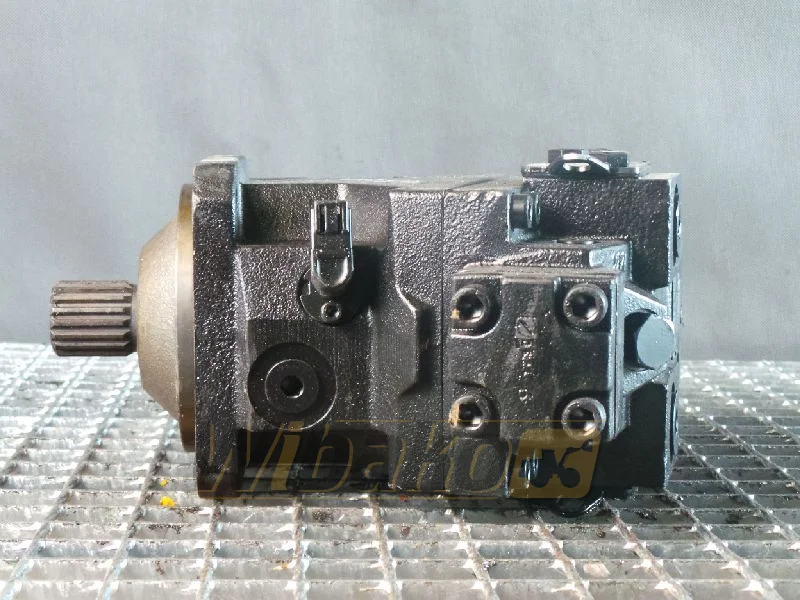

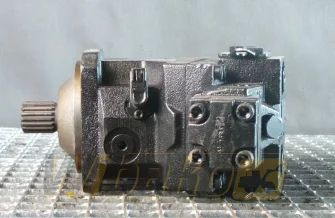

Sauer Hydraulic Motor H1B080 AL2BANB PBDSJS SA10NN

Description

The Sauer H1B080 hydraulic motor is a modern variable displacement unit designed with axial piston technology. Thanks to its compact design and high power density, it is suitable for demanding hydrostatic systems in mobile and industrial machinery. The bent-axis construction ensures optimal torque transmission, high efficiency, and long service life even under heavy loads. The motor offers stepless displacement adjustment, enabling precise adaptation of operating parameters to the system's needs. Integrated noise reduction and flow loss minimization solutions guarantee user comfort and smooth operation.

Technical data

  • Type: H1B080 AL2BANB PBDSJS SA10NN
  • Technology: axial piston, bent-axis
  • Displacement: approx. 80 cm³/rev
  • Adjustment range: from Vg max to Vg min = 0
  • Nominal pressure: up to 400 bar
  • Maximum pressure: up to 450 bar
  • Speed range: up to 4000 rpm (depending on conditions)
  • Rotation: clockwise / counter-clockwise
  • Operating temperature: -25°C to +95°C
  • Working fluid: hydraulic oils DIN 51524, biodegradable fluids ISO 15380

Application

The Sauer H1B080 hydraulic motor is widely used in travel and work drives of construction, road, forestry, and agricultural machinery. It also performs well in industrial installations requiring high efficiency and precise control. Variable displacement allows dynamic changes in speed and torque, making it ideal for systems demanding quick response and flexibility.

Properties

  • High volumetric and mechanical efficiency
  • Can work in open and closed circuits
  • Compact design for easy installation
  • Durability under heavy-duty conditions
  • Low noise level due to optimized valve plate geometry
  • Option for integration with parking brake and safety valves
  • Easy servicing and long lifetime

Specification

Specification Value
name Hydraulic motor
mark Sauer
type H1B080 AL2BANB PBDSJS SA10NN
condition new
displacement 80 cm³/rev
nominal pressure 400 bar
maximum pressure 450 bar
maximum speed 4000 rpm
operating temperature -25°C to +95°C
