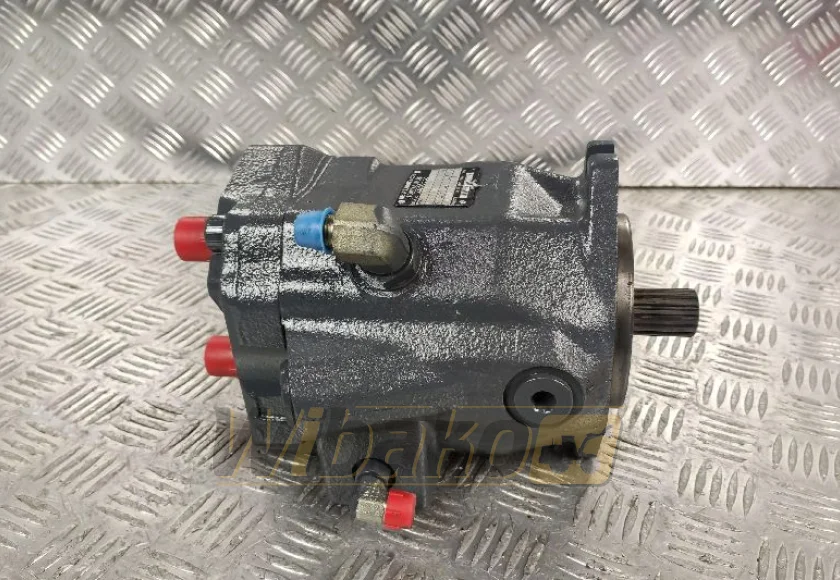

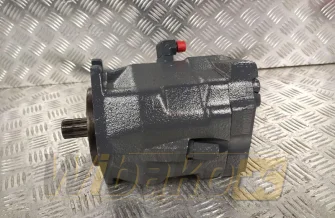

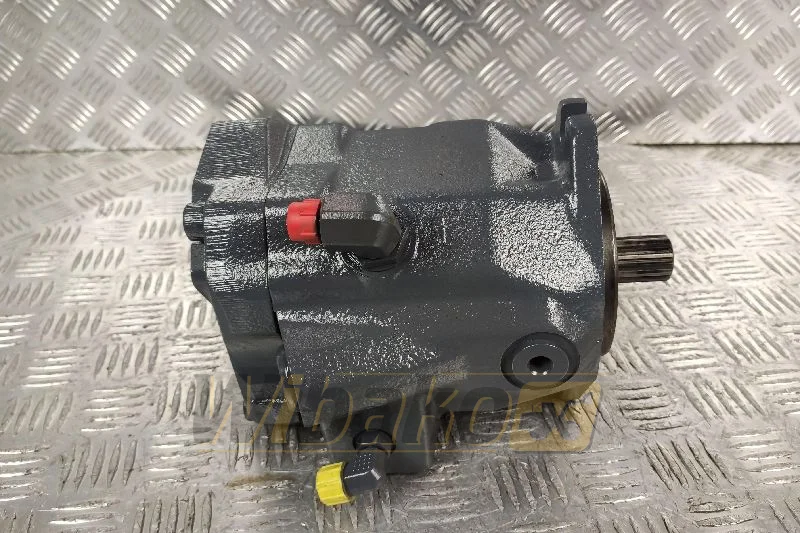

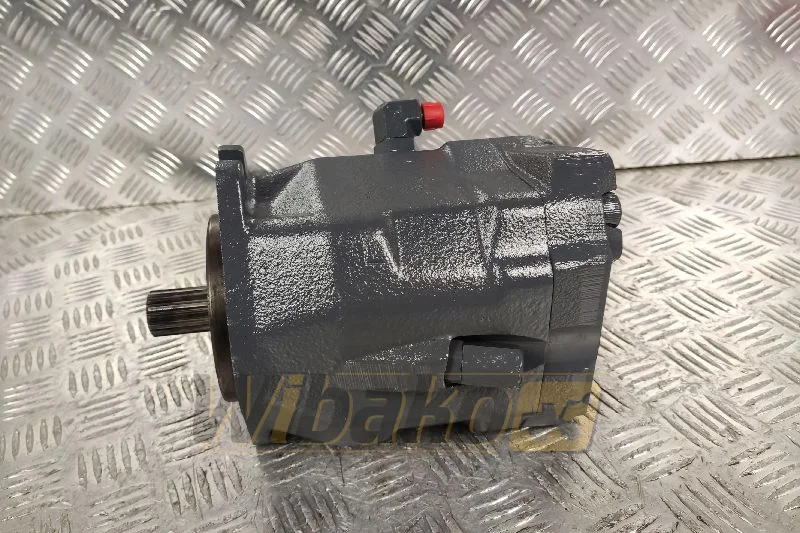

Hydraulic motor Rexroth LA10VM45DG/52W1-VRC64N000 G3255322

Rexroth LA10VM45DG/52W1-VRC64N000 hydraulic motor – efficient, durable, compact bent-axis motor with variable displacement for demanding machinery.

  • Condition: used
  • SKU: 69170
Ocena 4,7

- +

Product description

Hydraulic Motor Rexroth LA10VM45DG/52W1-VRC64N000

Description

The Rexroth LA10VM45DG/52W1-VRC64N000 hydraulic motor is a high-performance drive unit designed for demanding industrial and mobile applications. Featuring an axial piston design with a bent axis, it ensures reliability, high energy efficiency, and compact dimensions, making it suitable for integration in various construction and agricultural machines. The variable displacement allows flexible adjustment of torque and speed to application requirements, enhancing the overall efficiency of the hydraulic system.

Technical Data

  • Type: axial piston, bent axis
  • Displacement: 45 cm³/rev
  • Nominal pressure: up to 400 bar
  • Maximum pressure: 450 bar
  • Speed range: up to 3500 rpm
  • Operating temperature: -25°C to +95°C
  • Hydraulic fluid: mineral oil DIN 51524, others on request
  • Rotation: clockwise/counterclockwise
  • Minimum operating viscosity: 10 mm²/s
  • Optimum operating viscosity: 16–36 mm²/s

Application

The Rexroth LA10VM45DG/52W1-VRC64N000 hydraulic motor is widely used in hydrostatic drives of construction, road, forestry, and industrial machinery. It is applied in excavators, loaders, road rollers, harvesters, as well as in drive systems of cranes and special vehicles. Its compact design allows direct installation in gearboxes and reducers, saving space and improving system efficiency.

Properties

  • High energy efficiency due to optimized piston and swash plate design
  • Suitable for open and closed circuit systems
  • Compact construction for easy gearbox integration
  • Long service life thanks to durable materials
  • Low vibration and noise during operation
  • Precise torque control
  • Reliable performance under heavy-duty conditions

Specification

Specification Value
name Hydraulic motor
mark Rexroth
type LA10VM45DG/52W1-VRC64N000
part number G3255322
condition used
displacement 45 cm³/rev
nominal pressure 400 bar
maximum pressure 450 bar
maximum speed 3500 rpm
operating temperature -25°C to +95°C
optimum viscosity 16–36 mm²/s
