Hydraulic motor Rexroth A6VM080DA0000007C/65MWV0N4Z81D0-0 R902260027

Rexroth A6VM080DA0000007C hydraulic motor, axial piston variable, 80 cm³ displacement, automatic control, ISO 3019-2 mounting, standard shaft bearing, no speed sensor.

  • Condition: new
  • SKU: 55486
Ocena 5,0

- +

Product description

Axial piston variable motor A6VM Series 65. Geometric displacement 080 cm3. Control device: automatic control, speed related, hydraulic travel direction valve. Without pressure control/override. Without solenoid. Without additional function. Damping one-sided in outlet from large stroking chamber. Setting range for displacement: Without Vg max setting screw, long (0-adjustable) Vg min setting screw. Metric, port threads with O-ring sealing according to ISO 6149. Sealing material: FKM (fluoroelastomer). Standard shaft bearing. Mounting flange ISO 3019-2 140-4. Splined shaft W35×2×16×9g. SAE working ports A and B at rear. With flushing and boost pressure valve, mounted flushing on both sides, flushing flow at: Δp = pND ‒ pG = 25 bar and v = 10 mm2/s (pND = low pressure, pG = case pressure). Flushing flow: 10. Without speed sensor. Standard version .

Specification

Specification Value
name Hydraulic motor
mark Rexroth
type A6VM080DA0000007C/65MWV0N4Z81D0-0
part number R902260027
serial number 91088466
condition new
product name Axial piston variable motor A6VM Series 65
geometric displacement 080 cm³
control device Automatic control, speed related, hydraulic travel direction valve
pressure control Without pressure control/override
solenoid Without solenoid
additional function Without additional function
damping One-sided in outlet from large stroking chamber
displacement setting range Without Vg max setting screw, long (0-adjustable) Vg min setting screw
port threads Metric, with O-ring sealing according to ISO 6149
sealing material FKM (fluoroelastomer)
shaft bearing Standard shaft bearing
mounting flange ISO 3019-2 140-4
shaft type Splined shaft W35×2×16×9g
sae working ports A and B at rear
flushing and boost pressure valve With flushing and boost pressure valve, mounted flushing on both sides
flushing flow 10 mm²/s at Δp = pND ‒ pG = 25 bar (pND = low pressure, pG = case pressure)
speed sensor Without speed sensor
version Standard version

List of reviews:

Grzegorz

2025-06-15

Silnik działa bez zarzutu, montaż był prosty, a wydajność znacznie poprawiła się w porównaniu do poprzedniego. Polecam!

Write a review.

See also

Discover our wide range of products

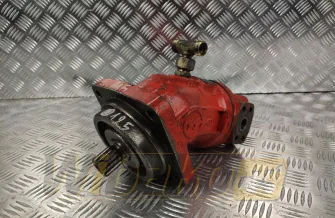

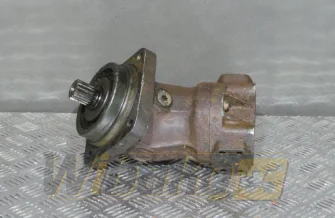

used Hydraulic motor Hydromatik A6VE80HZ/6.0W0500-PAL080B R909433641
Hydraulic motors

Hydraulic motor Hydromatik A6VE80HZ/6.0W0500-PAL080B R909433641

Price set Individually

- +

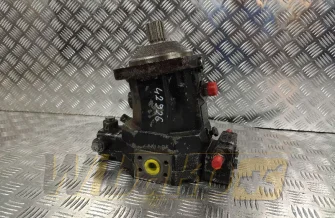

used Drive motor Linde BMV186 02
Hydraulic motors

Drive motor Linde BMV186 02

Price set Individually

- +

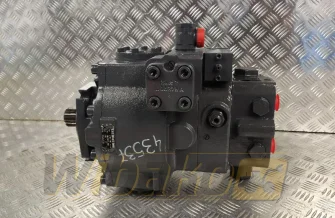

used Hydraulic motor Danfoss 15100P01
Hydraulic motors

Hydraulic motor Danfoss 15100P01

Price set Individually

- +

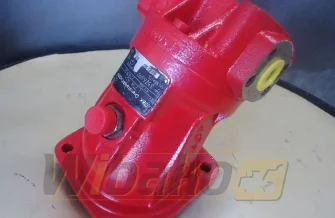

used Hydraulic motor Hydromatik A2F.55.W.1.Z.2 210.20.21.73
