Hydraulic motor Hydromatik A6VE107HZ3/63W-VZL020B R909604870

Hydromatik A6VE107HZ3/63W-VZL020B hydraulic motor, axial piston, series 6, 107 cm³ displacement, HZ3 control type, 63 service line ports.

  • Condition: reconditioned
  • SKU: 4641
Ocena 4,8

- +

Product description

Here's the translation of the provided text from Polish to English in the context of construction machinery parts: ```html

Hydraulic Motor Hydromatik A6VE107HZ3/63W-VZL020B R909604870

Technical Specifications

  • Type: Variable displacement hydraulic motor, plug-in design
  • Series: A6VE, series 6
  • Geometric displacement: up to 107 cm³/rev
  • Design type: axial piston group in a bent axis configuration
  • Nominal pressure: 400 bar
  • Maximum pressure (momentary): 450 bar
  • Speed range: up to 3550 rpm at max Vg
  • Maximum torque: approx. 681 Nm at Δp = 400 bar
  • Operating viscosity range: optimally 16–36 mm²/s
  • Oil temperature: -25°C to +115°C (FKM seals)
  • Minimum displacement: 0 – ability to fully zero the flow
  • Weight: approx. 47 kg

Applications

  • Hydrostatic mobile drives in open and closed circuits
  • Construction, road, and agricultural machines requiring high starting torque
  • Drive systems, fan drives, and working mechanisms
  • Integration with mechanical transmissions – plug-in version for compact mounting

Compatibility

  • Closed circuit pumps Linde HPV-02, Liebherr DPVG, and other high-pressure axial pumps
  • Capability to operate in tandem systems with a transmission
  • Suitable for HLP hydraulic oils according to DIN 51524-2 and biodegradable fluids (ISO 15380 – upon request)

Catalog Numbers

  • Rexroth Hydromatik: R909604870
  • Type: A6VE107HZ3/63W-VZL020B

Features

  • Compact design – full integration capability with the transmission
  • Very high starting torque
  • Smooth capacity adjustment from max Vg to 0
  • Long service life due to hydrostatic bearing of the piston group
  • Option to equip with a flushing valve and speed measurement connection
  • Reliable operation in harsh mobile conditions
```
A6VE axial piston motor, series 6. Displacement: 107 cm³. Control type: HZ3. Service line ports: 63.

Specification

Specification Value
name Hydraulic motor
mark Hydromatik
type A6VE107HZ3/63W-VZL020B
part number R909604870
serial number 259.25.12.10
condition reconditioned
product type A6VE Axial Piston Motor
series 6
displacement 107 cm³
control type HZ3
service line ports 63

List of reviews:

Dominik

2025-09-21

Silnik hydrauliczny spełnia swoje zadanie. Po regeneracji działa poprawnie, nie zauważyłem większych problemów. Warto zwrócić uwagę na jakość wykonania.
Ewa

2025-09-16

Silnik działa bez zarzutu, a jego regeneracja była bardzo udana. Zdecydowanie polecam zakupy w tym sklepie!
Andrew

2025-09-05

The hydraulic motor functions as expected after refurbishment. Installation was straightforward and it appears to be performing well in operation.
Eryk

2025-04-16

Silnik hydrauliczny działa zgodnie z oczekiwaniami. Regeneracja została przeprowadzona poprawnie, a wydajność jest na odpowiednim poziomie.

Write a review.

See also

Discover our wide range of products

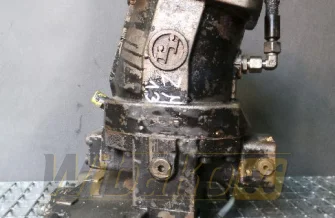

used Engine reducer Hydromatik A2FM125/61W-PAB010
Hydraulic motors

Engine reducer Hydromatik A2FM125/61W-PAB010

Price set Individually

- +

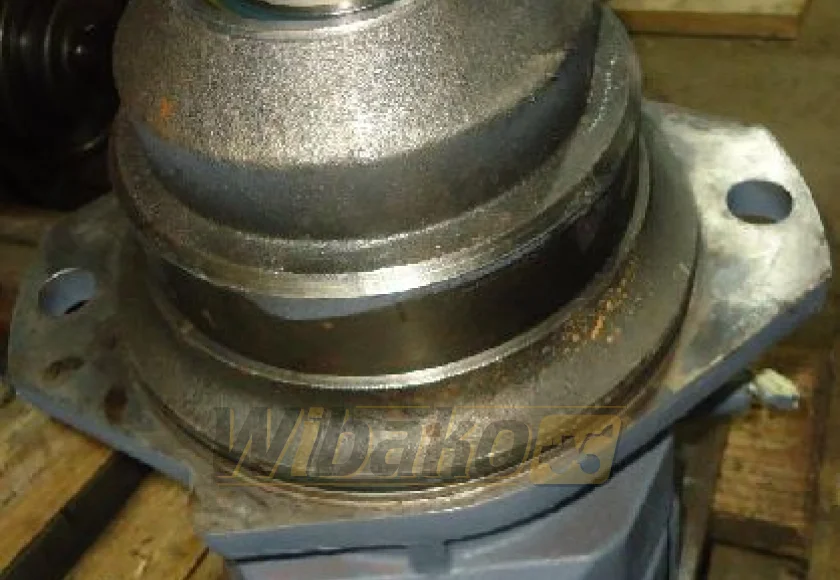

used Gear motor SNP2/25 D SC03
Hydraulic motors

Gear motor SNP2/25 D SC03

Price set Individually

- +

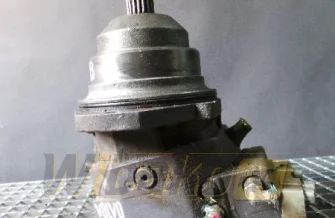

used Gear motor Sauer 83996272 01F22
Hydraulic motors

Gear motor Sauer 83996272 01F22

Price set Individually

- +

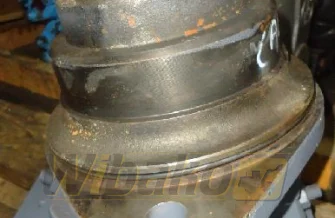

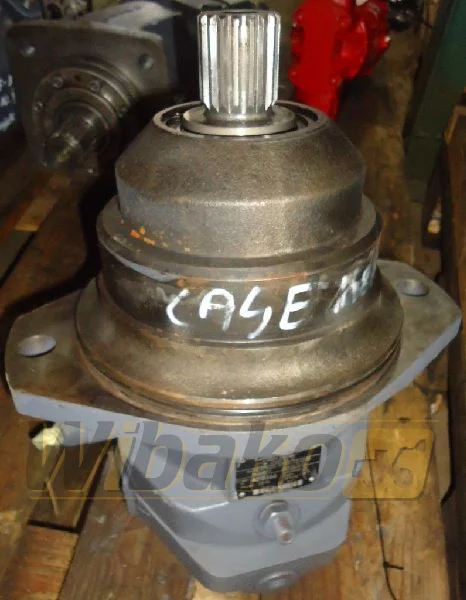

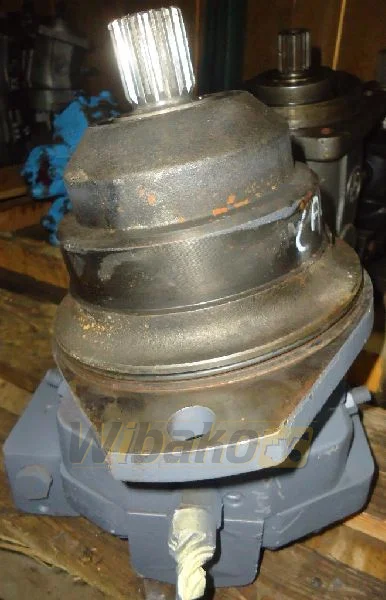

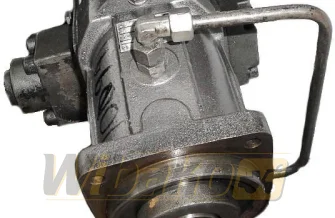

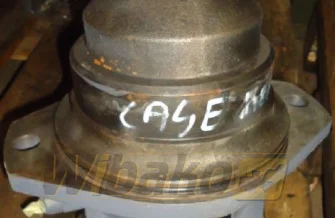

used Hydraulic motor Case 888B
Hydraulic motors

Hydraulic motor Case 888B

Price set Individually

- +

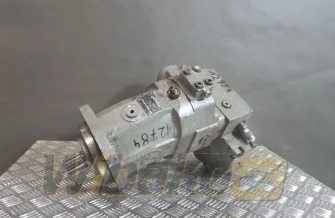

used Hydraulic motor Hydromatik A2FM125/61W-VAB010 R909409630
Hydraulic motors

Hydraulic motor Hydromatik A2FM125/61W-VAB010 R909409630

Price set Individually

- +

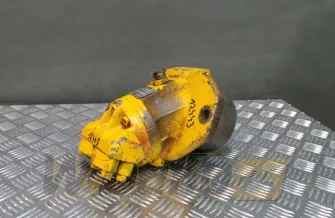

used Hydraulic motor Liebherr FMV100 9276969-001
