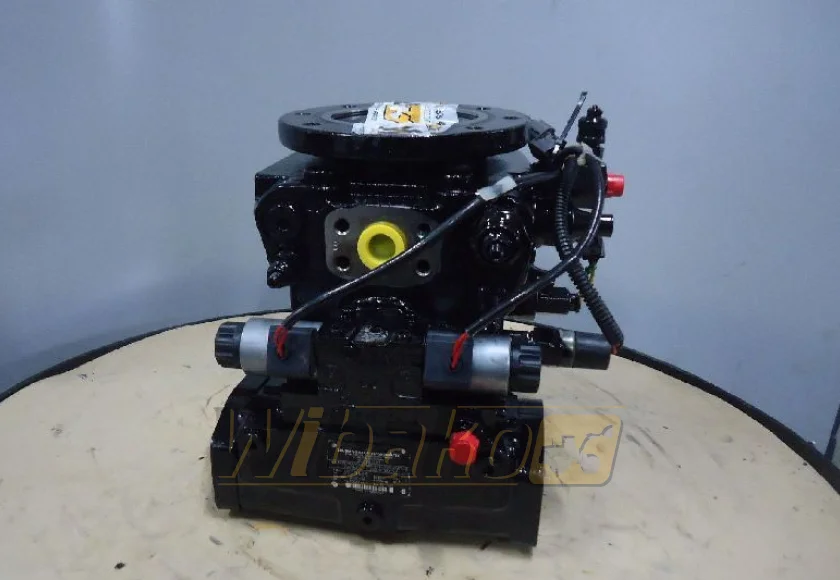

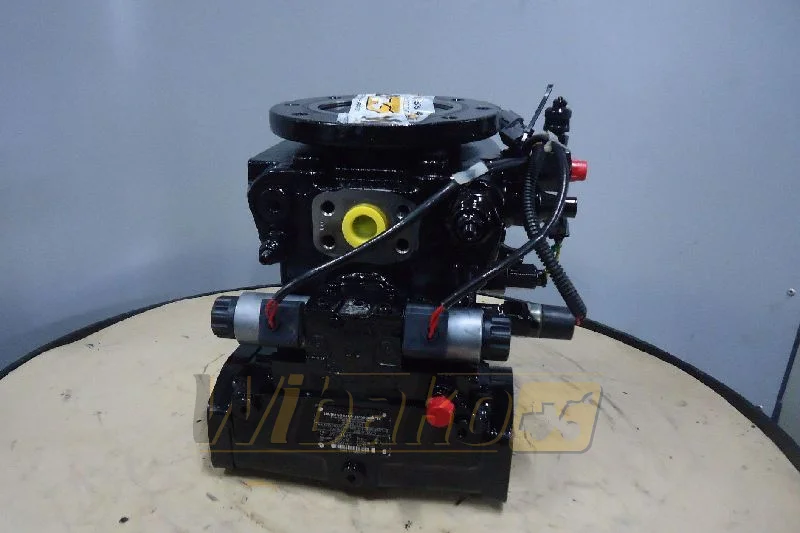

Hydraulic pump Hydromatic A4VG56DA1D7/32R-NAC02F025SH-S R902055144

Hydraulic pump A4VG56DA1D7/32R-NAC02F025SH-S R902055144 features a 56 cm³ displacement, automatic control, and high-pressure relief valve. Ideal for various hydraulic applications.

  • Condition: used
  • SKU: 12587
Ocena 5,0

- +

Product description

Axial piston variable pump A4VG. Geometric displacement 56 cm3. Automatic control, speed related U = 12 V. Pressure cut-off. DA control valve, fixed setting, ports for pilot control device. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft DIN 5480 for combination pump – 1st pump. Mounting flange SAE J744 2-hole. SAE working port A and B, top and bottom Suction port S bottom. Integrated boost pump. Flange SAE J744 101-2 (B), hub for splined shaft 7/8 in 13T 16/32DP. High-pressure relief valve, direct operated, fixed setting 250 to 420 bar with bypass. Filtration in the boost pump suction line.

Specification

Specification Value
name Hydraulic pump
mark Hydromatic
type A4VG56DA1D7/32R-NAC02F025SH-S
part number R902055144
condition used
product type Axial piston variable pump A4VG
geometric displacement 56 cm³
control type Automatic control, speed related
voltage 12 V
pressure cut-off Yes
control valve DA control valve, fixed setting
pilot control device ports Yes
series 3
index 2
direction of rotation Clockwise (viewed on drive shaft)
sealing material NBR (nitrile rubber)
shaft seal material FKM (fluoroelastomer)
shaft type Splined shaft DIN 5480 for combination pump – 1st pump
mounting flange SAE J744 2-hole
sae working port a Top
sae working port b Bottom
suction port S bottom
integrated boost pump Yes
flange specification SAE J744 101-2 (B)
hub for splined shaft 7/8 in 13T 16/32DP
high-pressure relief valve Direct operated, fixed setting 250 to 420 bar with bypass
filtration In the boost pump suction line
