Hydraulic pump Liebherr LPVD125 9886099

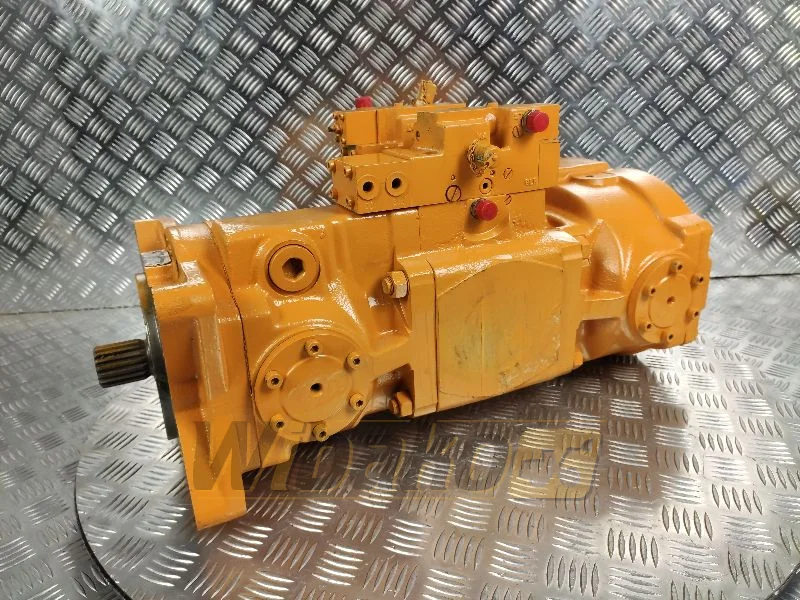

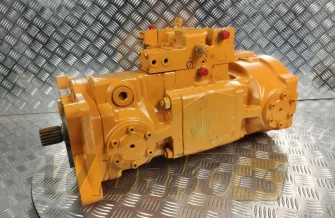

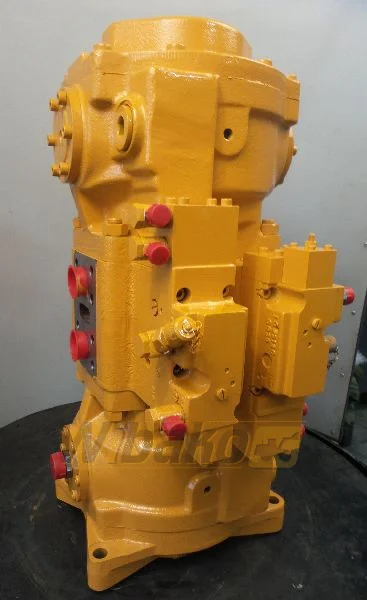

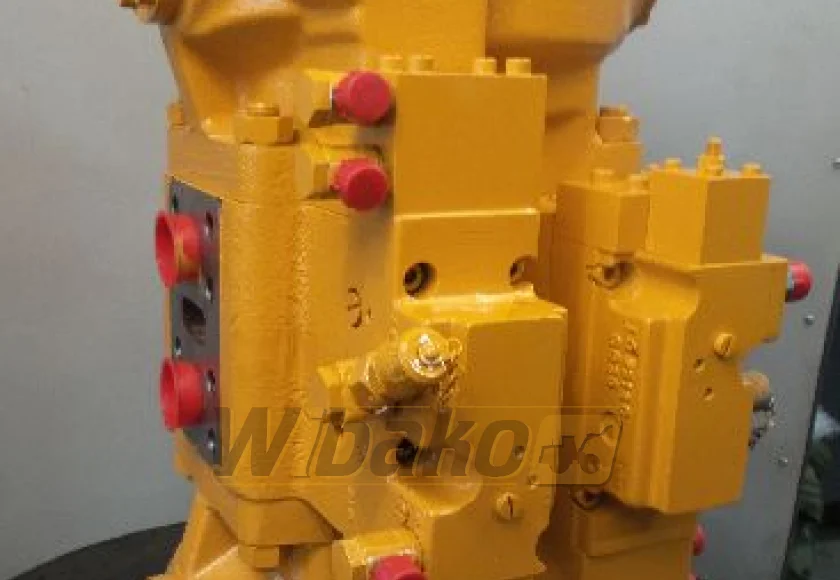

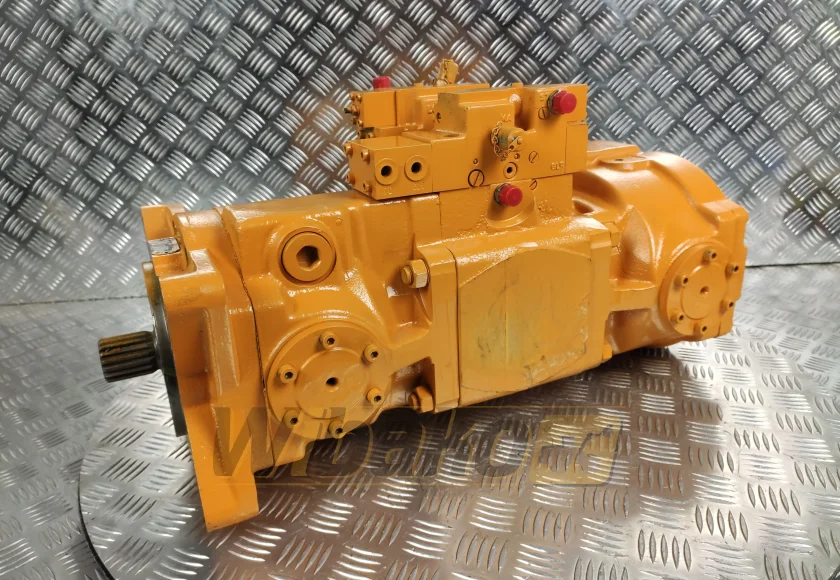

Liebherr Hydraulic Pump LPVD125 - 9886099

Technical Data

• Type: double axial piston pump with a swash plate (open circuit)
• Model: LPVD125
• Geometric displacement: 125 cm³/rev
• Nominal pressure: 350 bar
• Maximum pressure: 380 bar
• Maximum speed: approx. 2150 rpm
• Maximum flow: ~270 l/min (at n=2150 rpm)
• Torque at 350 bar pressure: ~700 Nm
• Direction of rotation: right (optional left on request)
• Housing pressure: ≤ 2 bar
• Operating temperature: -25°C to +115°C

Applications

• Hydraulic systems in construction machinery (excavators, loaders, cranes)
• Drive for working attachments requiring high pressures and precise flow control
• Open systems with the ability to operate in variable flow mode

Compatibility

• Liebherr machines from the excavator and crane series equipped with a hydraulic system with LPVD pump
• Compatibility with Liebherr, Linde, Kawasaki hydraulic motors
• Installation in accordance with SAE J744 and DIN/ISO 3019 standards

Catalog Numbers

• Original Liebherr number: 9886099
• Pump type: LPVD125

Features

• Modular design allowing for the selection of regulators and connections
• High durability due to materials with high strength
• Low noise emissions thanks to an optimized control plate
• Precise performance adjustment by changing the angle of the swash plate
• Possibility of connecting in a tandem configuration or with a power take-off gearbox

Hydraulic Pump Liebherr LPVD125 (Part No. 9886099)
