John Deere Machine Service and Repair

Contact us and schedule a service for your machine

Fill out the form



John Deere Machinery Service

Professional Hydraulics Reconditioning, PowerTech Engine Overhauls, and Mobile Diagnostics

Are you looking for comprehensive technical support for your John Deere equipment? Power loss in a crawler excavator, damage to a Parker piston pump, smoking PowerTech series engine, or perhaps a sudden breakdown on a construction site or open-cast mine? The specialists at the WIBAKO service center are ready for action.

Send an inquiry or contact our technical department. Within 24 hours, we will analyze the issue, select the optimal repair path, and provide a transparent quote.



Loaders, Excavators, Crushers, Screeners

John Deere Heavy Equipment Service

WIBAKO's technical facility carries out highly specialized repairs of John Deere construction and industrial machinery. We effectively eliminate faults causing reduced efficiency in hydraulic systems, leaks from planetary gears, and power drops under load in G, K, L, P, and E series machines. Our scope of services includes precise computer diagnostics, mobile field repairs, and major overhauls of hydraulic systems and power units.

A key element setting our service apart is our in-house stationary hydraulic and engine dynamometer test bench. Every refurbished component leaves the workshop only after passing measurement tests under full working pressure and maximum load.





Table of Supported John Deere Machines and Scope of WIBAKO Services

Machine Category Supported John Deere Machines Key Components / Engines Scope of WIBAKO Service Works
Mini Excavators and Compact Excavators

• John Deere 17G / 26G / 35G

• John Deere 50G / 60G / 85G



• Yanmar / John Deere PowerTech 2.4L / 3.3L engines

• Nachi / Kayaba / Parker hydraulic pumps

• Eaton / Nabtesco final drives and swing motors



• Calibration and adjustment of control valves

\bullet$ Elimination of play in kingpin and boom joints

\bullet$ Diesel engine major overhauls

\bullet$ Seal replacement in final drives and hydraulic motors


Wheeled Excavators

\bullet$ John Deere 140W

\bullet$ John Deere 190GW/210GW



\bullet$ John Deere PowerTech 4.5L / 6.8L engines

\bullet$ Parker / Linde / Danfoss multi-section pumps

\bullet$ ZF / DANA transmissions and drive axles



\bullet$ CAN bus error diagnostics

\bullet$ Hydrostatic travel drive reconditioning

\bullet$ Service of axles and multi-plate wet brakes

\bullet$ Rapid mobile service interventions


Medium Crawler Excavators

\bullet$ John Deere 130G/160G LC

\bullet$ John Deere 180G LC/210G LC/E210 LC

• John Deere 250G LC / 260P



\bullet$ PowerTech Plus / PSS 4.5L / 6.8L engines

\bullet$ Kawasaki K3V / Parker A8VO piston pumps

\bullet$ Main Load Sensing control valves (PFC)

• Kayaba / JD swing gears and final drives



$• Pump performance testing on a test bench

\bullet$ PowerTech power unit rebuilds

\bullet$ Sealing and replacement of undercarriage components

• Setting of working pressures and relief valves


Heavy Crawler Excavators

• John Deere 300G LC / 350G LC / 350P

• John Deere 380G LC / 470G LC / 870G LC



• PowerTech PSS 9.0L / 13.5L Stage V engines

• Variable displacement pump hydraulic systems

• Advanced proportional block control valves

• Reinforced HD (Heavy Duty) undercarriages



• Reconditioning of hydraulic motors and swing gears

• Replacement of rotary sections in main pumps

• Calibration of hydraulic valve electronics

• Regenerative welding and reinforcement of HD booms


Wheel Loaders

• John Deere 444K / 524K / 544K / 544P

• John Deere 624L / 644L / 724L / 844L



• John Deere PowerTech 4.5L / 6.8L / 9.0L engines

\bullet$ PowerShift and continuously variable CVT transmissions

\bullet$ Variable displacement steering and working pumps

\bullet$ Overhaul of PowerShift transmissions and CVT drives

\bullet$ Reconditioning of travel hydrostats

\bullet$ Repair of steering system and attachment cylinders

\bullet$ Replacement of seals and frame articulation joints


Crawler Dozers

\bullet$ John Deere 450K / 550K / 650K

• John Deere 700L / 750L / 850L / 1050K



• PowerTech 4.5L / 6.8L / 9.0L / 13.5L engines

• Hydrostatic crawler drive (Dual-Path)

• Rexroth / Danfoss travel pumps and motors



• Tuning and calibration of the Dual-Path system

• Rebuild of piston pumps and travel motors

• Undercarriage service and track tension adjustment

• Reconditioning of blade control cylinders



Professional Construction Machinery Service

John Deere Fluid Power Hydraulics Repair

The hydraulic system in John Deere machines relies on advanced pressure and flow compensation systems (PFC / Load Sensing). The WIBAKO facility performs full reconditioning of fluid power hydraulic components – from John Deere 35G mini excavators to John Deere 870G LC heavy mining equipment.



Parker, Sauer Danfoss, Kawasaki, Linde

Main Pump Reconditioning

Modern John Deere excavators and loaders (e.g., E210 LC, 210G, 350G) utilize variable displacement piston pumps operating under extreme pressure. Degraded oil, high temperature, or the presence of metal shavings lead to loss of internal sealing and reduced machine efficiency.

The process of hydraulic pump rebuild at WIBAKO:

Disassembly and inspection: Cleaning in ultrasonic washers and precise measurement of wear on the cylinder block, pistons, valve plate, and swashplate.

Replacement of wear parts: Installation of factory-new rotary elements, Viton seals, or main shaft bearings.

Regulator tuning: Precise setting of Load Sensing valves and power regulators responsible for optimal loading of the PowerTech engine.



Professional Construction Machinery Service

Main Control Valve Repair

Smoothness and precision of movement of the attachments in John Deere equipment depend on the condition of the main control valve spools. We eliminate symptoms such as boom drift, bucket jerking, or lack of combined attachment movements through:

Honing and fitting spools in the control valve body

Replacement and calibration of main pressure valves

Reconditioning of anti-shock and holding sections



Quality Guarantee

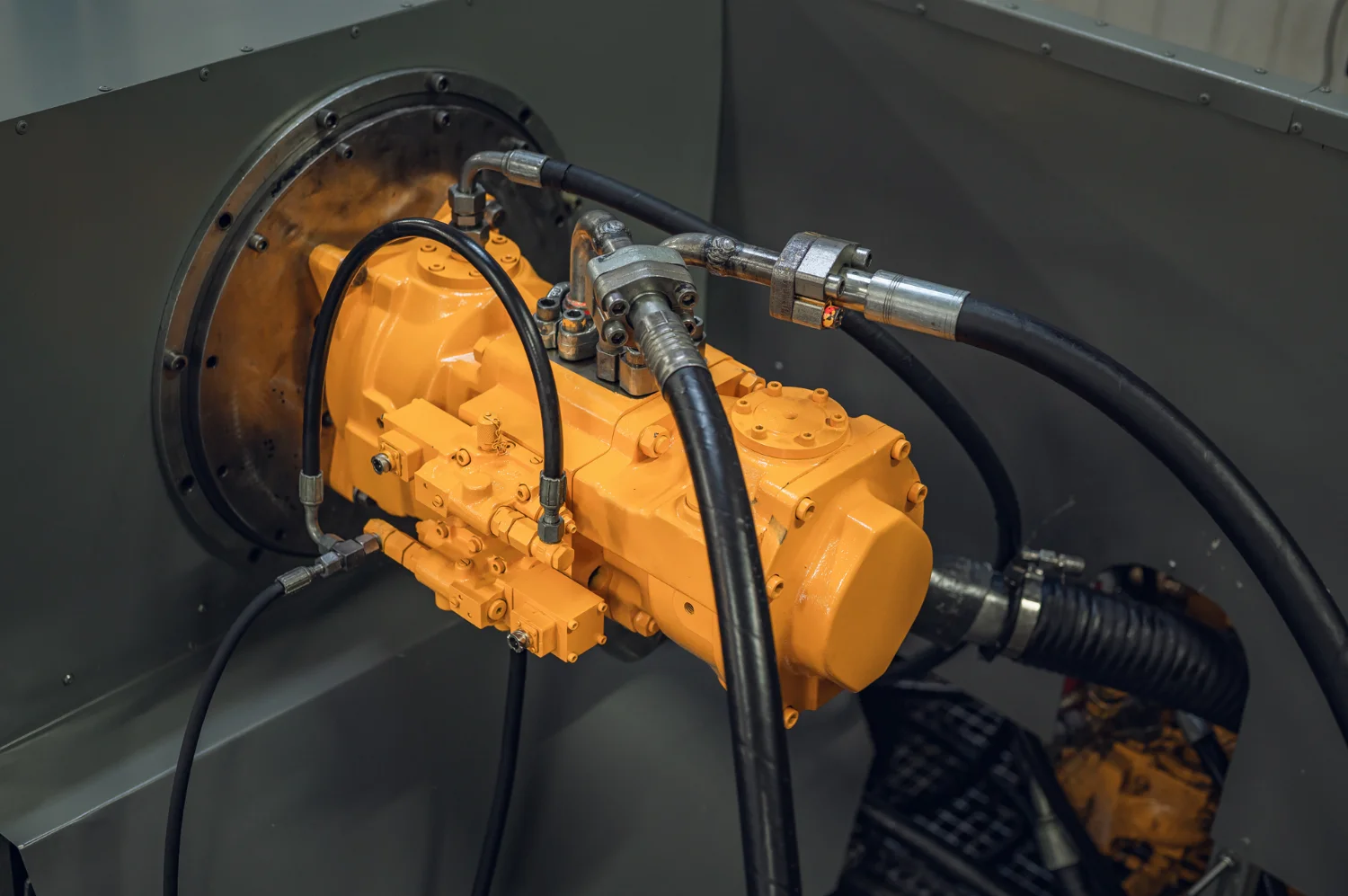

Verification on a stationary hydraulic test bench

No John Deere hydraulic component leaves the service without a load test. On the diagnostic test rig, we heat the oil to working temperature $(50-60^{\circ}C)$ and check volumetric and mechanical efficiency at pressures reaching 40.0 MPa. We attach a full measurement report to the component.



Comprehensive Internal Combustion Engine Repair

John Deere Engine Major Overhauls

Power units from the John Deere PowerTech family (4.5L, 6.8L, 9.0L, and 13.5L series) are renowned for high torque, but require professional technical service. We perform complete diagnostics of High-Pressure Common Rail (HPCR) injection systems, auxiliary component repairs, and complete overhauls of internal combustion power units.



Experienced Mechanics

Scope of Work for Engine Overhaul at WIBAKO

Geometric verification: Micrometric measurements of wear on cylinder liners, block alignment, crankshaft journals, or cylinder head mating surface flatness.

Machining: Crankshaft grinding, block line boring, head resurfacing, and installation of oversized main and connecting rod bearings.

Fuel system and turbocharging: Reconditioning or replacement of high-pressure pumps, HPCR injectors, and variable geometry turbochargers.

Assembly and calibration: Rebuilding the unit with new components (pistons, rings, seals) while adhering to manufacturer-recommended tightening torques.



Operational Guarantee

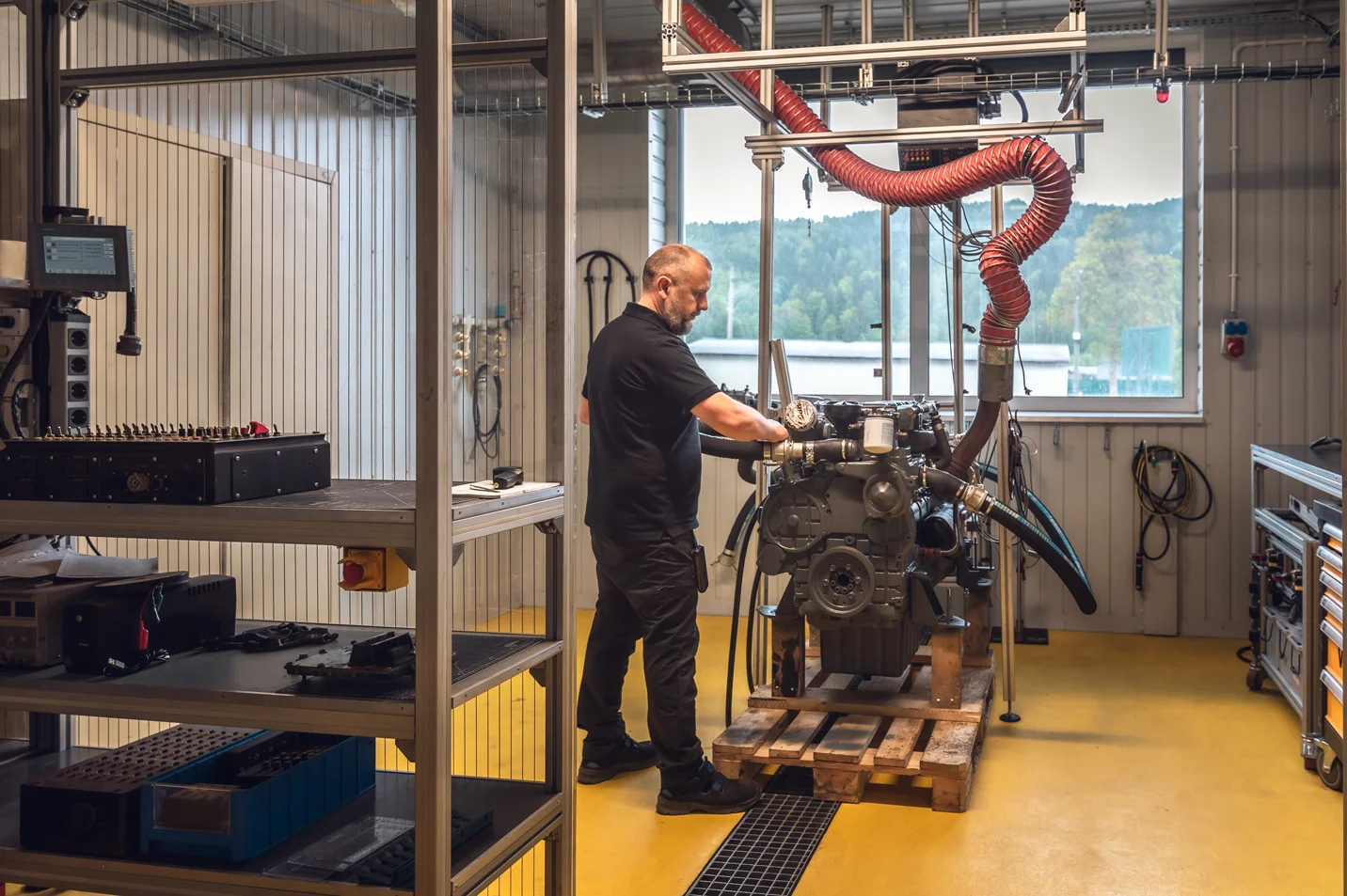

Load testing on an engine dynamometer

The reconditioned John Deere engine undergoes break-in testing under artificial load. We measure actual output power, torque, oil pressure, boost pressure, and exhaust parameters, ensuring that the power unit is ready for continuous operation in the machine.

Emergency Diagnostics - Table of Symptoms and Risks

Observed Symptom Potential Technical Cause Consequences of Ignoring the Fault
Drop in power and slower operation after the oil warms up Internal leaks in the main pump (wear of the cylinder block or Parker/Linde valve plate). Pump seizure, contamination of the entire valve and cylinder system with metal shavings.
Loud, metallic noise from the hydraulic pump Cavitation due to leaks on the suction side, clogged suction filter, or worn shaft bearings. Destruction of the pump swashplate, block cracking, drive shaft breakage.
Machine pulling to one side while driving Damage to a section in the travel motor, leak in the relief valve or final drive. Damage to the planetary gear, oil leak, and complete immobilization of the machine.
Black smoke and loss of engine power Burnout or sticking of HPCR injectors (PowerTech 4.5/6.8L), failure of variable geometry turbine (VGT). Piston burnout, damage to DPF/SCR system, necessity of engine major overhaul.
Uneven, jerky responses to joystick movements Drop in pilot control pressure, failure of proportional solenoid valves. Uncontrolled attachment movements posing a threat on the construction site.
Oil leak near the track drive sprocket Damage to floating seal rings (Duo-Cone) in the final drive. Seizure of planetary gears due to loss of lubrication and sand ingress.

Nationwide Coverage across Poland

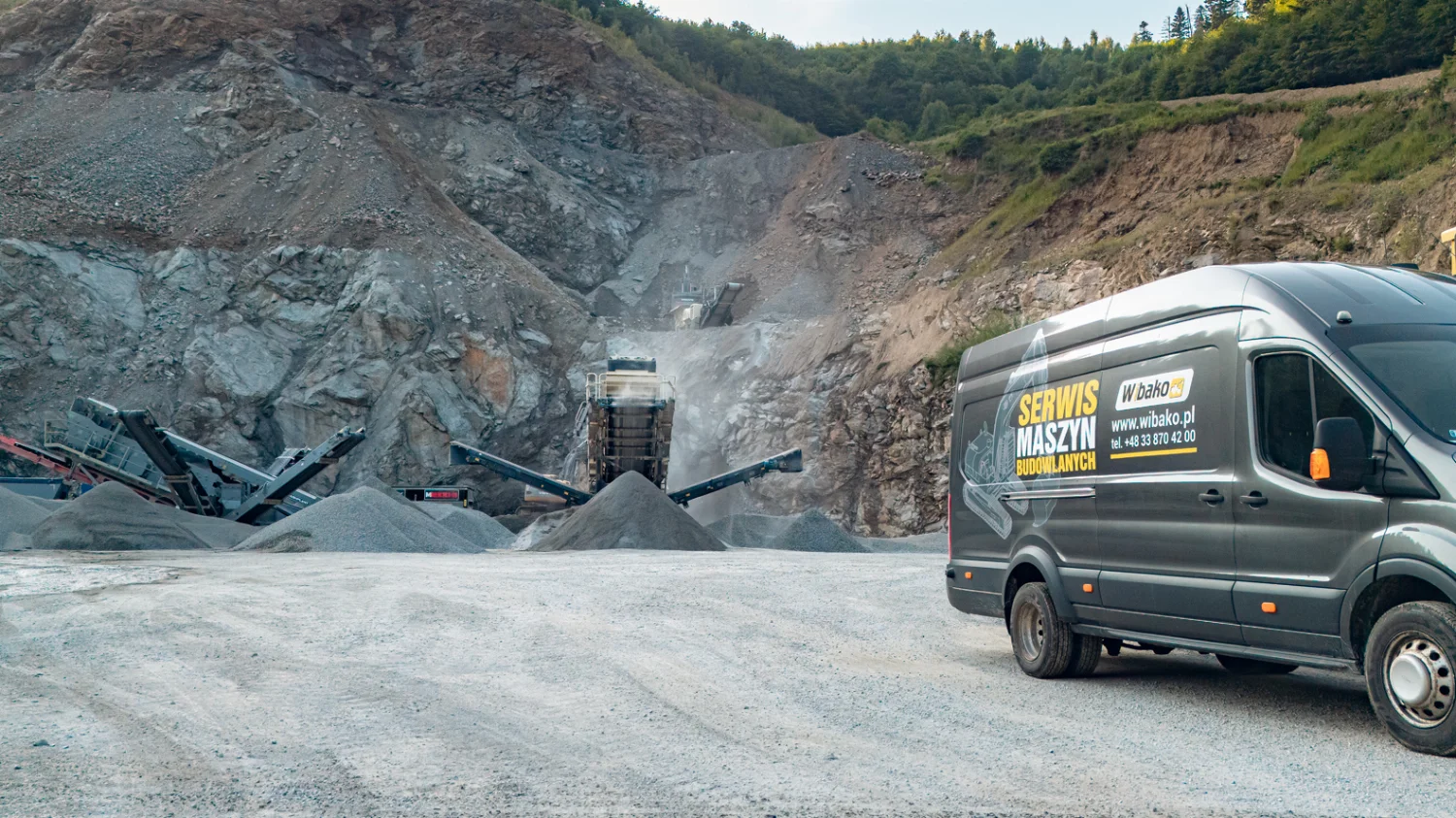

John Deere Mobile Service

Do you need rapid intervention on site? Our mobile team carries out repairs directly at the Customer's location. We handle requests across Poland (including Warsaw, Poznan, Wroclaw, Lodz, Gdansk, Katowice, Krakow, Szczecin, Rzeszow), guaranteeing fast response times.

Thanks to mobile computer diagnostics and a well-stocked spare parts warehouse (replacement pumps, seals, complete HPCR injectors, filters), we eliminate many faults right during the first field visit.



Over 30 Years of Experience

Why WIBAKO is a Good Choice?

Autonomous diagnostic facilities: We have our own hydraulic and engine test benches.

Experienced engineers and mechanics: Our experts have specialized for years in troubleshooting PFC systems, Load Sensing, and John Deere PowerTech engines.

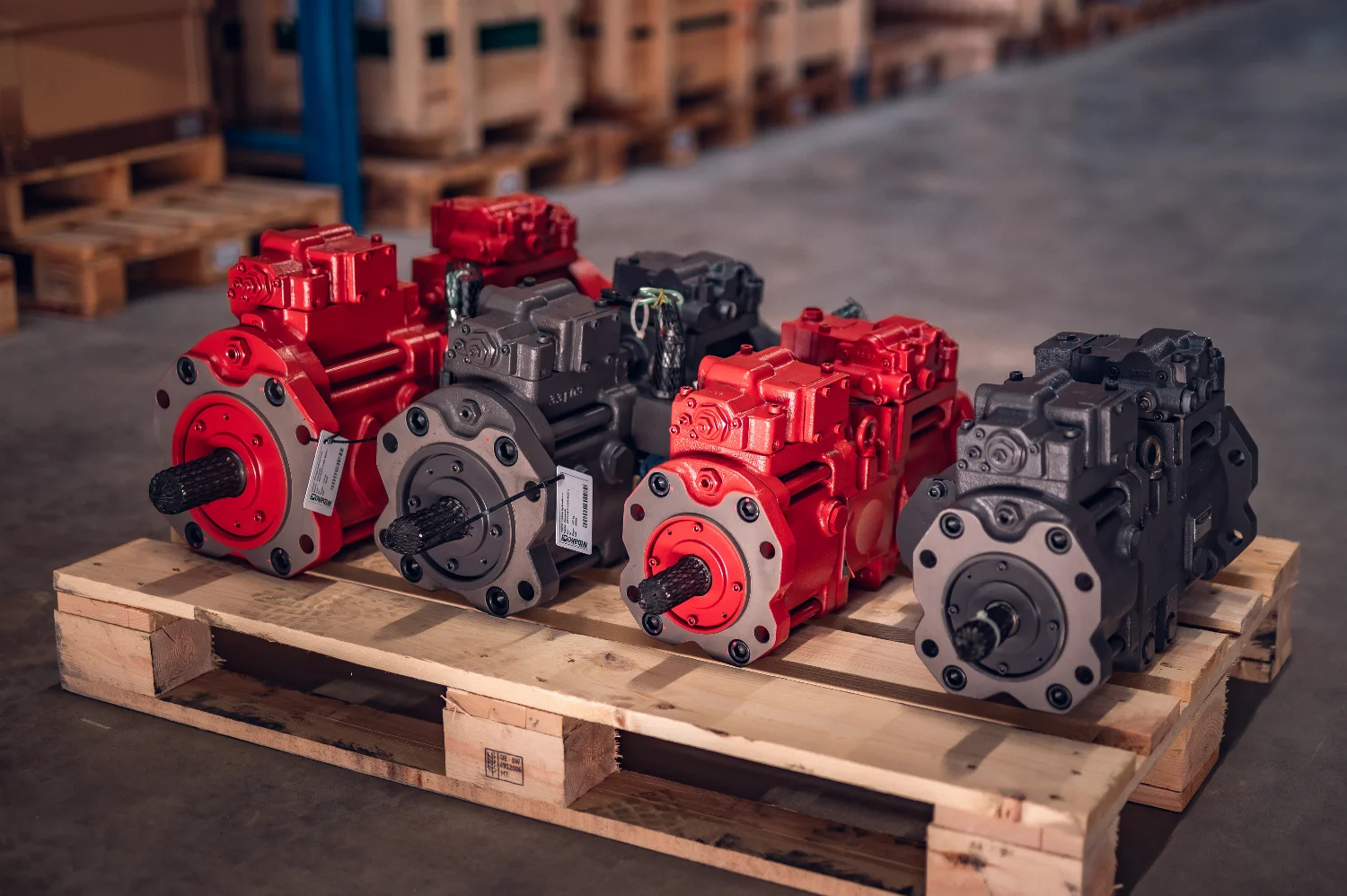

Availability of parts and exchange units: We offer reconditioned pumps and engines ready for immediate installation, significantly reducing your machine's downtime.

Warranty on services provided: Every repair of a hydraulic component and internal combustion engine is covered by a written operational warranty.



Which John Deere machine models do you repair at WIBAKO?

We service the full range of John Deere construction, road-building, and industrial machinery. We repair mini and compact excavators (e.g., 17G, 35G, 50G, 85G), wheeled excavators (140W, 190GW, 210GW), medium and heavy crawler excavators (130G, 160G LC, 210G LC, E210 LC, 350G LC, 470G LC, 870G LC), wheel loaders (K, L, and P series, e.g., 544K, 624L, 724L), and crawler dozers (e.g., 450K, 700L, 850L, 1050K).

Which John Deere engines do you service and overhaul in your workshop?

We specialize in the repair and major overhaul of diesel power units from the John Deere PowerTech family (including 4.5L / 4045, 6.8L / 6068, 9.0L / 6090, and 13.5L / 6135) across all emission standards (Stage IV, Stage V with HPCR, EGR, DPF, and SCR systems).

How long does an repair estimate take, and what is the turnaround time?

We prepare an initial problem analysis and an estimated cost quote within 24 hours of notification. The completion time for in-shop repairs depends on the extent of the damage and component availability; however, thanks to our extensive on-site spare parts inventory, we complete most orders efficiently and without unnecessary delays.
