Deutz TCD2012 L04 2V & 4V Engine Parts – New and Used

Remanufactured six-cylinder diesel engine on a pallet in a parts warehouse with shelving

The Deutz TCD 2012 L04 is a liquid-cooled, four-cylinder inline diesel with turbocharging and charge air cooling. It comes in two main variants: TCD 2012 L04 2V (two valves per cylinder) and TCD 2012 L04 4V (four valves per cylinder). It has been fitted to many construction and agricultural machines from various manufacturers, which is why parts for it are still in high demand.

At WIBAKO we stock new parts, used parts from dismantled engines and remanufactured components for this engine. We ship them from our warehouse in Kojszówka, Poland. Stock changes constantly, and the current parts list is shown below this article. Below we describe the part groups we carry most often and what to look out for when selecting them. For our wider range, see Deutz engine parts.

Fuel system

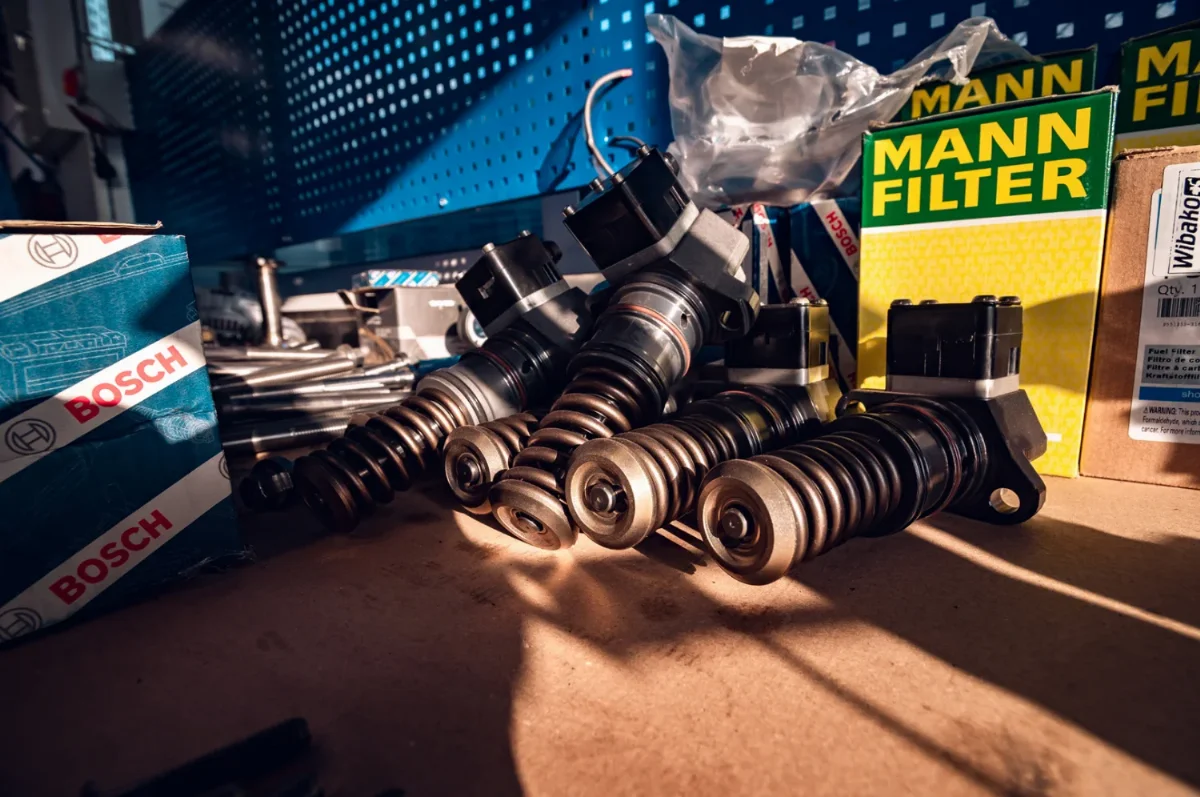

Diesel engine unit injectors on a workbench next to Bosch parts boxes and Mann Filter filters

This is the largest group of TCD2012 parts. It includes injectors, high-pressure pumps, fuel feed pumps, injection lines, fuel filter housings and ancillary components. Depending on the year of manufacture and emissions standard, engines in this series use different injection systems. Parts from one system will not fit the other, even when the engine model on the nameplate reads exactly the same.

Select injectors and pumps strictly by part number, not by appearance.
When replacing injectors, renew the sealing washers and inspect the injector bores in the cylinder head.
Contaminated fuel destroys new components in no time. Replace the filters and flush the system during installation.

Housings and sumps

This group covers oil sumps, flywheel housings, timing and valve covers, and thermostat housings. The shape of the oil sump and flywheel housing depends on the machine the engine is installed in. The same TCD 2012 L04 2V may have one sump in a roller and a different one in a loader. One example is the flywheel housing for the Deutz TCD2012 L04 2V. For flywheel housings, compare the SAE size, bolt pattern and starter motor position.

Electrical system

In this group we have starter motors, alternators, wiring harnesses and cold-start aids. For a starter, check the voltage (12 V or 24 V), the number of pinion teeth and the mounting. For an alternator, what matters is voltage, current output and pulley type. Engine harnesses are specific to a particular engine and ECU version, so we do not match them without a part number.

Lubrication system

We stock oil pumps, oil coolers, filter housings, oil pickups with suction pipes and pressure sensors. If you are replacing an oil cooler after coolant has got into the oil, don't stop at the cooler alone. Flush the system and check the condition of the bearings. Low oil pressure is often caused by worn bearings rather than a faulty pump, so it is worth diagnosing that first.

Drive components (crank train and timing)

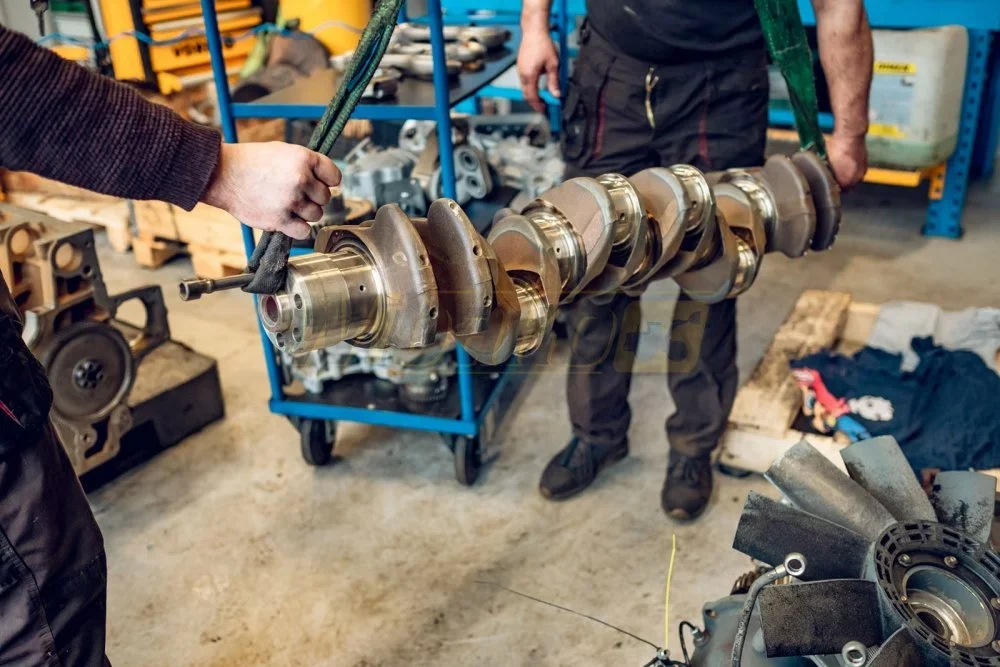

Mechanics moving a diesel engine crankshaft on lifting straps in an engine remanufacturing workshop

This group includes crankshafts, connecting rods, pistons, bearing shells, camshafts, gears, flywheels and vibration dampers. A crankshaft with scored journals can often be reconditioned by regrinding to an undersize and fitting undersize bearings, provided there are no cracks and the runout is within limits. With blocks and crankshafts, measurement counts, not judging by eye.

To replace the entire engine base, we also have a cylinder block for the Deutz TCD2012 L04 2V engine. When assembling the crank train, check the size grades of pistons and bearings. Engines in this series use a toothed timing belt, which is replaced together with the idlers at the interval specified in the operator's manual.

Intake and exhaust system

This group includes turbochargers, intake and exhaust manifolds, charge air pipes and exhaust gas recirculation (EGR) components on versions equipped with it. Before fitting a new turbocharger, find out why the old one failed. The most common causes are oil starvation, contaminated oil, a foreign object in the intake or a leaking intercooler. If the cause isn't eliminated, the new turbo will soon go the same way as the old one.

Cylinder heads

Cylinder head for the Deutz TCD2012 L04 2V engine

A 2V cylinder head will not fit the 4V version, as they differ in porting, number of valves and valve train. One example is the cylinder head for the Deutz TCD2012 L04 2V. Before buying a used head or fitting a remanufactured one, check:

flatness of the sealing face,
absence of cracks, especially between the valve seats and around the injector bore,
condition of the valve seats, valves and guides,
tightness of the coolant passages (pressure test).

On Deutz engines, the head gasket is usually selected in a thickness matched to the measured piston protrusion. This measurement is taken every time the engine is assembled, especially after machining the block or replacing pistons.

Sensors and modules

In this group we have crankshaft and camshaft speed sensors, coolant temperature sensors, boost pressure and temperature sensors, oil pressure sensors and engine control units. With an ECU, it's not just the hardware number that matters but also the software matched to the machine. A used module often needs to be programmed or configured. Before replacing a sensor, check the harness and connectors, because a damaged wire throws the same fault codes as a faulty sensor.

How to select a part for the Deutz TCD2012

The name "TCD 2012 L04" alone is not enough for reliable part selection. Within this model there are 2V and 4V versions, different injection systems and machine-specific ancillaries. The most reliable approach is:

the part number stamped or labelled on the old component (Deutz part numbers usually take the form 04xxxxxx),
the engine serial number from the nameplate, which we use to check the configuration,
the make, model and year of the machine as supporting information.

Send us these details with your enquiry. We will check compatibility, available alternatives and whether a new, used or remanufactured part is the better choice in your case.

TCD2012 engine overhaul and remanufacturing at WIBAKO

When more than one part is damaged, a complete engine overhaul often makes more sense than replacing components one by one. We offer service and repair of Deutz TCD2012 L04 engines. This covers diagnostics, disassembly, part inspection, reconditioning of the block, crankshaft and cylinder head, and reassembly and commissioning of the engine.

We can also fit parts bought from WIBAKO to your machine. The labour rate for such installation is PLN 190 net per hour, and travel to the customer is charged at PLN 3 net per kilometre, counted both ways. The scope and cost of an overhaul are determined after diagnosis, so the best place to start is to contact us and describe the symptoms.

Frequently asked questions

Do Deutz TCD 2012 L04 2V parts fit the L04 4V version?

Not always. The cylinder head, valves, camshaft and some ancillaries differ between the two-valve and four-valve-per-cylinder versions. Compatibility has to be checked by part number or engine serial number.

How can I check whether a part fits my TCD2012 engine?

The most reliable way is by the part number stamped on the old component or by the serial number on the engine nameplate. Send us that number and we will check compatibility and any alternatives.

Do used parts for the Deutz TCD2012 come with a warranty?

We state the terms for each specific used or remanufactured part in our quote. Ask about them before buying and include the part number.

Do you ship parts for the TCD 2012 L04 engine?

Yes, we ship parts from our warehouse in Kojszówka, Poland. We confirm availability and shipping method when you order, especially for large components such as a block or cylinder head.
