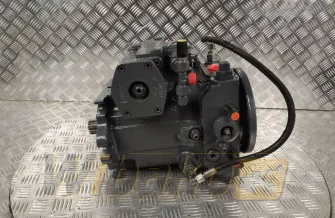

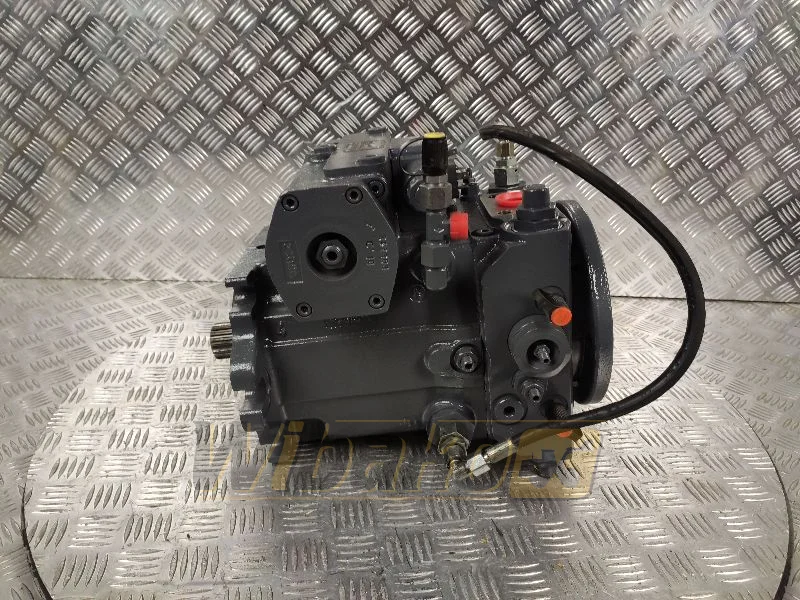

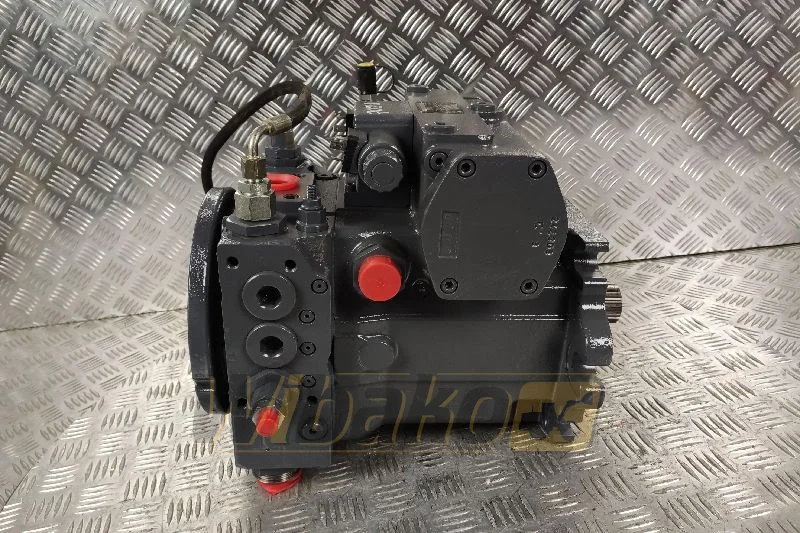

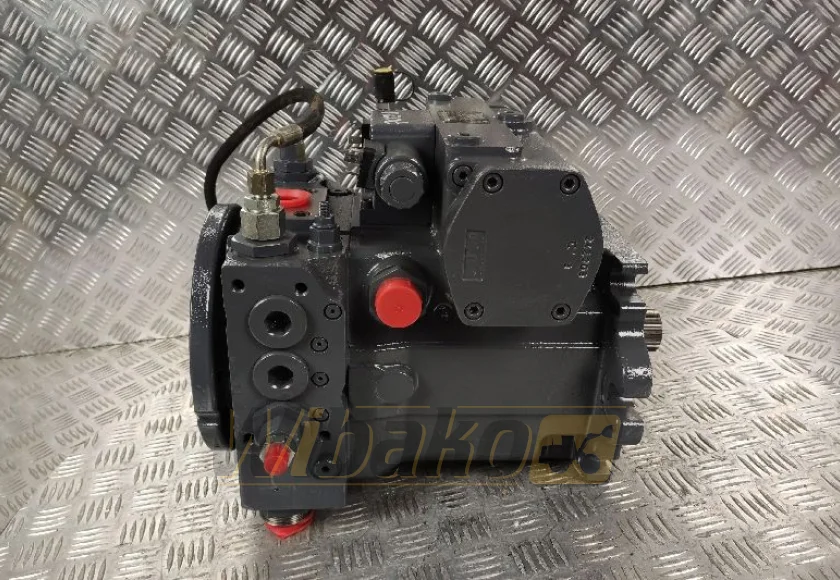

Hydraulic pump Rexroth A4VG140DA2D2/32R-NZF02F071SH-S R902127205

Hydraulic pump Rexroth A4VG140DA2D2/32R-NZF02F071SH-S R902127205, 140 cm³, 24V control, clockwise rotation, NBR sealing, integrated boost pump, high pressure relief valve 100-420 bar.

  • Condition: reconditioned
  • SKU: 70311
Ocena 5,0

- +

Product description

Axial piston variable pump A4VG. Geometric displacement 140 cm3. Automatic control, speed related U = 24 V. Pressure cut-off. DA control valve, fixed setting. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft DIN 5480 for single pump. Mounting flange SAE J744 2+4-hole. SAE working port A and B, top and bottom Suction port S bottom. Integrated boost pump. Flange SAE J744 127-2 (C), hub for splined shaft 1 1/4 in 14T 12/24DP. High pressure relief valve, pilot operated 100 to 420 bar with bypass. Filtration in the boost pump suction line.

Specification

Specification Value
name Hydraulic pump
mark Rexroth
type A4VG140DA2D2/32R-NZF02F071SH-S
part number R902127205
condition reconditioned
product type Axial piston variable pump A4VG
geometric displacement 140 cm³
control type Automatic control, speed related U = 24 V
pressure cut-off Yes
control valve DA control valve, fixed setting
series 3
index 2
direction of rotation Clockwise (viewed on drive shaft)
sealing material NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer)
shaft type Splined shaft DIN 5480 for single pump
mounting flange SAE J744 2+4-hole
working ports SAE working port A and B, top and bottom
suction port Suction port S bottom
integrated boost pump Yes
flange specification SAE J744 127-2 (C), hub for splined shaft 1 1/4 in 14T 12/24DP
high pressure relief valve Pilot operated 100 to 420 bar with bypass
filtration In the boost pump suction line

List of reviews:

Matthew

2025-04-22

The hydraulic pump functions as expected after refurbishment. Installation was straightforward, and it appears to be performing well in operation.
