Heavy machinery repair

Furukawa Service

Has your Furukawa equipment lost impact energy, developed leaks in the control valve, or suffered a hydraulic power failure? At WIBAKO, we effectively repair crawler excavators, loaders, geotechnical drill rigs, and flagship FX, FXJ, and F series hydraulic breakers. We eliminate faults in Kawasaki piston pumps, hydraulic controls, and Isuzu and Cummins engines. We offer mobile diagnostics directly on the construction site or in the quarry, as well as advanced component reconditioning in our workshop, restoring your machines to peak operational performance.

When is it time for service?

Symptoms of Furukawa machinery and attachment failure

Ignoring the first signs of performance drop in demolition attachments or the Furukawa base machine is the easiest path to a serious and expensive breakdown that can completely halt operations at a demolition site or quarry.

Here are the key warning signs indicating the need for diagnostics or repair:

Drastic drop in hammer impact energy - weakening impact force, blank firing, or a drop in stroke frequency in Furukawa FXJ and F series hammers most often signal nitrogen loss in the diaphragm accumulator or piston wear.

Slowing down and loss of power in operating movements - if the excavator or loader loses power after the hydraulic oil warms up, this is a classic symptom of internal seal loss in the main pump or control valve.

Unusual noise and vibration in the percussion system - loud, uneven knocking in the attachment or vibrations transmitted to the machine arm signal worn guide bushings, chisel damage, or a control valve failure.

Oil leaks from attachments or undercarriage - leaks from the main hammer seals, cylinders, or swivel joint reduce operating pressure and pose a risk of seizing working components.

Symptoms from the internal combustion engine - thick black or blue smoke from the exhaust, starting difficulties in Isuzu / Cummins units, and increased crankcase pressure (blow-by from the breather).

Metal shavings and dust in hydraulic filters - the presence of metal particles in the oil is a final warning of catastrophic main pump failure and contamination of the entire hydraulic system.



Mechanics with many years of experience

Fluid power and hydraulic breaker team

Furukawa demolition and construction equipment works in the most extreme environmental conditions. Our dedicated team of hydraulics specialists specializes in reconditioning Kawasaki piston pumps, travel and swing hydraulic motors, and advanced percussion attachments.

In our workshop, we precisely rebuild fluid power components installed in Furukawa excavators and drill rigs. Instead of replacing complete, expensive assemblies with new ones, we rebuild piston pumps by replacing rotary groups, valve plates, and pistons. Our technicians also have unique experience in servicing hydraulic breakers (including FXJ225, FXJ375, F22, F35, F45) and crushing jaws. We replace guide bushings, pistons, high-pressure seals, rebuild control valves, and recharge nitrogen accumulators to the manufacturer's nominal values.



Testing and verification of components under load

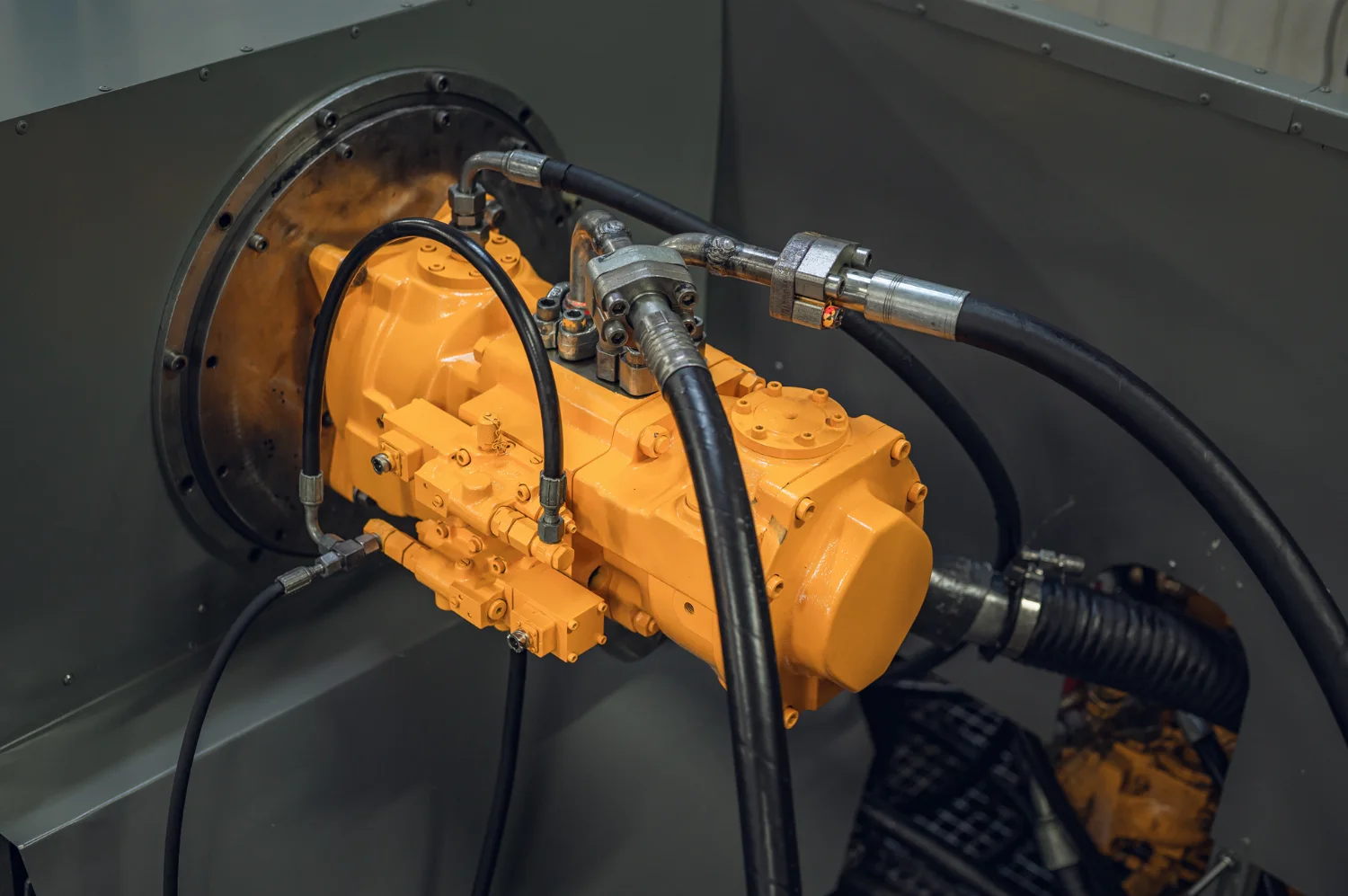

Professional hydraulic test bench

At WIBAKO, we don't make guesswork diagnoses. We have a specialized hydraulic test bench for verifying and testing pumps, hydraulic motors, and valves under full working load.

Every reconditioned main pump or travel motor undergoes pressure testing, simulating loads reaching up to 350 bar and oil temperatures reaching 70°C. We test pressure stability, power regulator response, and volumetric efficiency. As a result, you can be sure that the repaired component installed in your Furukawa machine will operate flawlessly from the first minute on the job site.



Mechanics with many years of experience

Comprehensive engine repairs and reconditioning

When the power unit in a Furukawa machine loses power under load, consumes excessive amounts of oil, or suffers from injection system failures, we perform complete major overhauls. Our team has extensive experience in rebuilding internal combustion engines from Isuzu, Cummins, Deutz, and Perkins fitted to demolition and geotechnical equipment.

Each engine removed from a Furukawa machine undergoes thorough washing, disassembly, and precision measurements of cylinder bores, crankshaft, and cylinder head. We perform full machining (crankshaft grinding, cylinder head resurfacing, block line boring), replace pistons, rings, bearings, and rebuild Common Rail injection systems.

Professional load testing

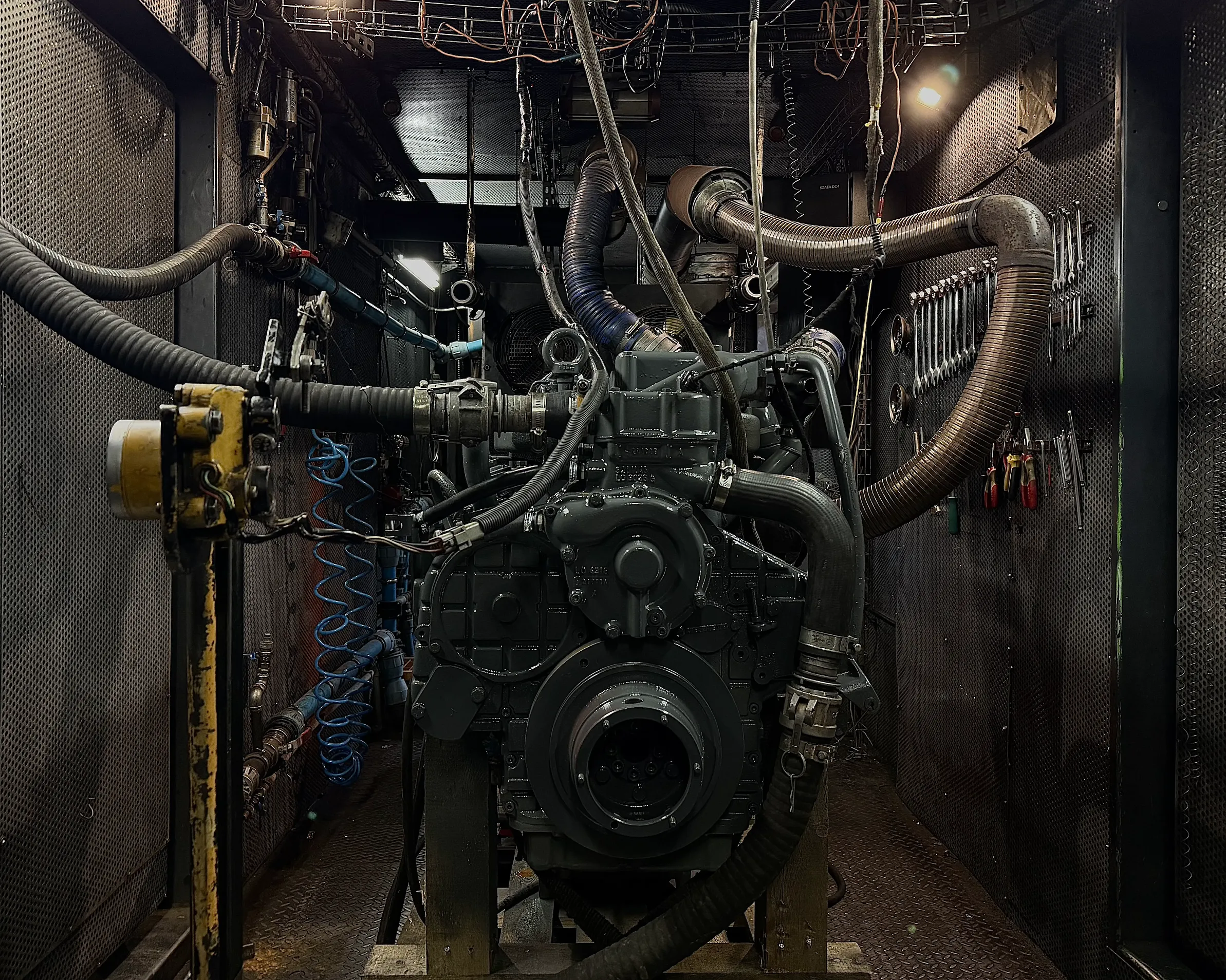

Engine dyno up to 500 HP

After completing a major overhaul, the internal combustion engine goes to our stationary engine dyno, allowing us to test units up to 500 HP.

We do not return engines without verifying their real performance. On the test stand, we run in the power unit under controlled conditions, simulating full operating loads - such as those encountered during reinforced concrete crushing or hard rock drilling. We monitor oil pressure, temperature curves, and fuel delivery parameters in real time. You receive a fully tested engine complete with a technical report confirming restoration to factory power.



Overview of Furukawa models and attachments covered by our service

Equipment Category Series / Type Popular Models Scope of Service Work
Hydraulic hammers (small) FX / FXJ Series FX15, FX25, FX35, FX45, FXJ125, FXJ175 Replacement of bushings, seals, chisels, nitrogen charging, valve reconditioning.
Hydraulic hammers (heavy) F / FXJ Series F22, F35, F45, FXJ225, FXJ275, FXJ375, FXJ475 Piston reconditioning, cylinder grinding, housing restoration, pressure testing.
Crushing jaws and demolition shears VR / V Series VR15, VR22, V16, V22 Tooth replacement, cylinder reconditioning, slewing ring and motor repair.
Crawler excavators and wheel loaders FX / FL FX60, FX120, FX200, FX300, FL230, FL330 Kawasaki pump reconditioning, undercarriage repair, Isuzu/Cummins engine overhauls.
Geotechnical / rock drill rigs HCR Series HCR900, HCR1200, HCR1500, HCR1800 Drifter repair, rotation hydraulics, compressors, and engines.



Fast diagnostics across Poland

Furukawa Mobile Service

We perfectly understand that transporting a tracked machine or drill rig from a quarry or job site involves huge costs. That is why our WIBAKO mobile teams reach the equipment directly where it works.

Equipped with mobile diagnostic apparatus, our service vehicles allow for quick pressure measurement in the hydraulic system, pump efficiency assessment, and control troubleshooting on-site. Minor breakdowns - such as cylinder leaks, hose replacements, valve tuning, or electronics diagnostics - are resolved on the spot. In the event of more severe mechanical damage, we disassemble the component and transport it to our service center. We travel to cities including Warsaw, Poznań, Kraków, Katowice, Wrocław, Białystok, Lublin, Szczecin, Gdańsk, Łódź, Nowy Sącz, and Zakopane.



Instant access to spare parts

One of the largest construction machinery parts warehouses in Poland

Time is money, especially in the demolition and mining industries. At WIBAKO, we maintain a well-stocked warehouse of spare parts - new, used, and reconditioned - dedicated to Furukawa machines and attachments.

We keep high-pressure seals, hammer repair kits, chisels, bushings, Kawasaki hydraulic pump parts, and Isuzu and Cummins engine components in stock. As a result, we reduce repair times to an absolute minimum.



Do I need to bring the whole excavator, or is it enough to bring just the hammer or hydraulic pump?

You don't need to transport the entire machine. You can deliver just the attachment or the dismantled component - such as a Kawasaki main pump or an Isuzu internal combustion engine-to our workshop in Kojszówka.

Do you respond to breakdowns directly at mine sites or demolition areas?

Yes, our mobile service unit comes directly to the machine's job site - including quarries, open-pit mines, and demolition sites across Poland. We are fully equipped with service vehicles and diagnostic gear.

Do you provide a warranty on repaired Furukawa engines or hydraulic pumps?

Yes, we provide a written warranty on all our repairs, regenerations of hydraulic pumps, internal combustion engines (Isuzu, Cummins, Deutz), and demolition attachments. Every component leaving our workshop undergoes testing on an engine or hydraulic dynamometer, and clients can request a report confirming factory-standard performance.
