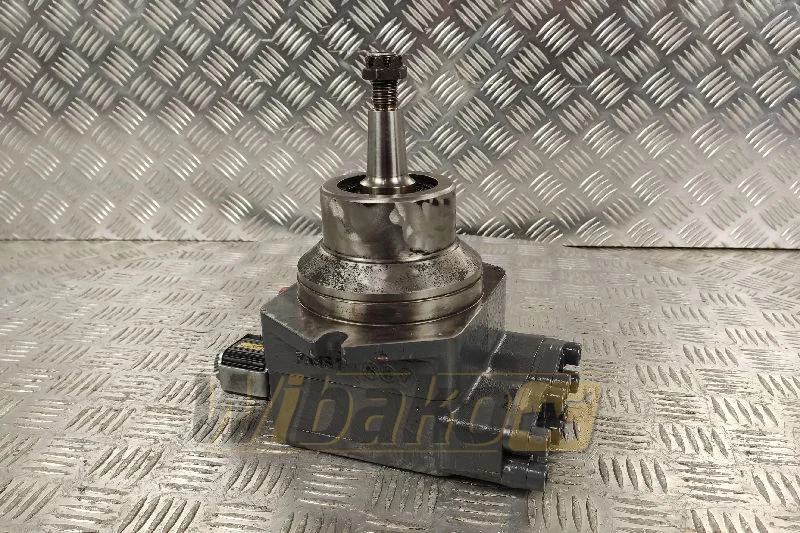

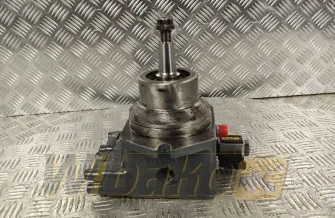

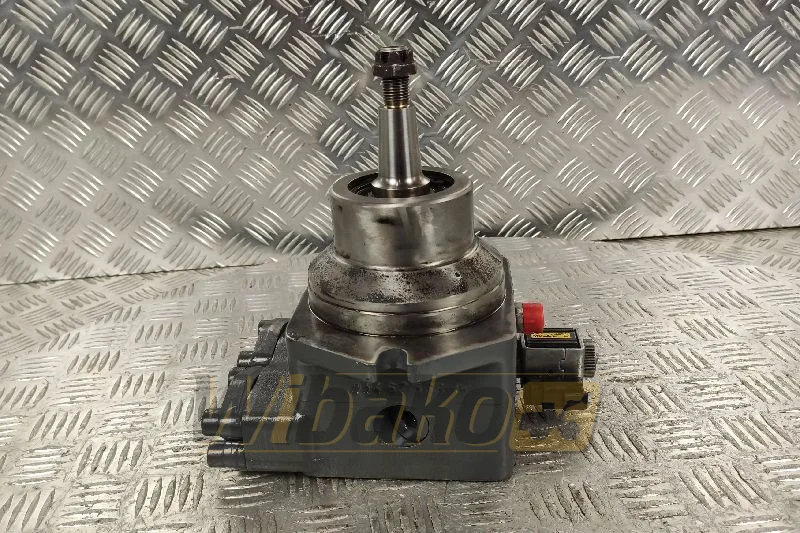

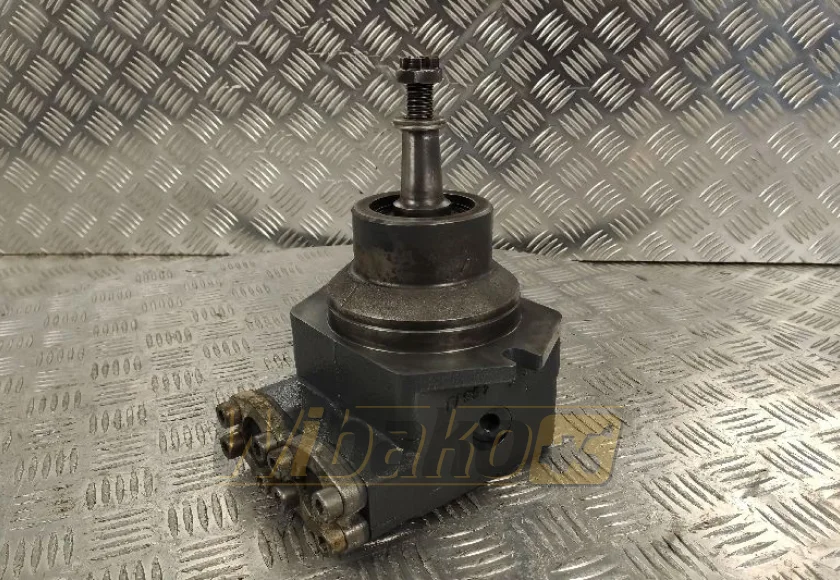

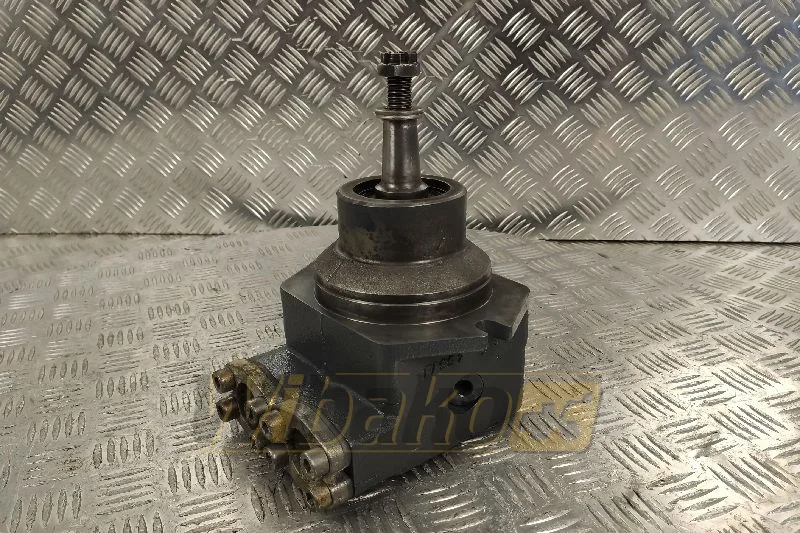

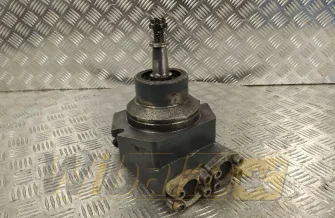

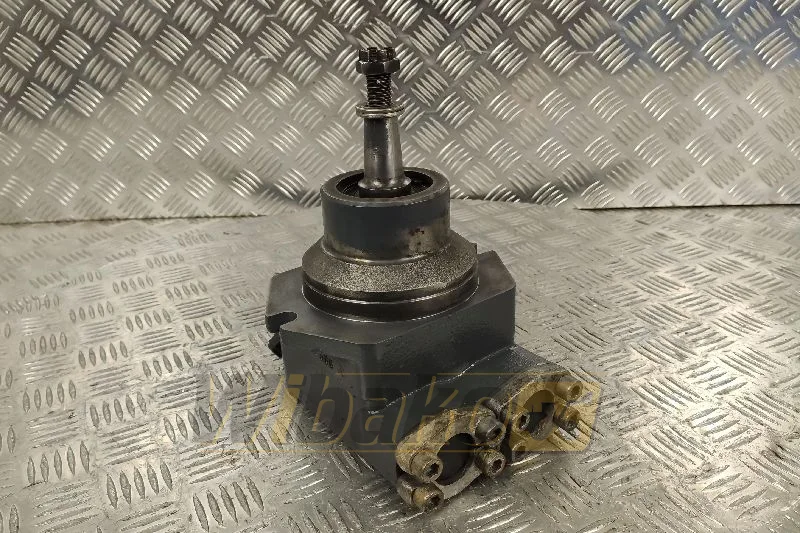

Hydraulic motor Liebherr 708470 10326078

Description

Technical Data

• Type: axial piston hydraulic motor
• Nominal pressure: up to 450 bar
• Maximum pressure: up to 500 bar
• Working fluid: hydraulic oil according to DIN 51524 or biodegradable alternatives
• Operating temperature range: -25°C to +115°C
• Applicable for open and closed circuit operation
• Optional integration with brake valve or multi-disc brake
• Speed: up to 3000 rpm (depending on size and configuration)

Applications

• crawler and wheeled excavators
• wheel loaders
• mobile cranes
• material handling machines
• industrial hydraulic systems

Properties

• High efficiency – optimized sliding contacts and large swashplate angle enable maximum torque and flow utilization.
• Low noise – advanced CFD and FEM design methods reduce vibrations and pulsations, ensuring quiet operation.
• Modular design – supports pressure regulators, load sensing, brake valves, and other control options.
• Long service life – tested under extreme conditions with pressures over 450 bar for maximum durability.
• Compact dimensions – can be directly integrated with gearboxes, reducing weight and installation space.
